Melzer Line with RFID and Magnetic Strip Applicators

Polygraphica can offer the following Melzer Plastic Card and Paper Ticket Production Line at a drastically reduced price.

Both machines are situated in the same factory and are available immediately

If you would like any further information on the lines please telephone +44 1924 200444 or email sales@polygraphica.com

MELZER E230 008 PAPER CARD/TICKET PRODUCTION LINE
Year of Manufacture: 2001

PIC Bosch CC120 M Servo/3
4 colour UV letter press
UV drying stations E130 946
Unwind pneumatic shaft: 72mm
Rewind pneumatic shaft: 72mm
Cutting stations x 2

Tooling Included:
One removable cutter 54 x 85.5mm 1 x 2 for carton
One removable cutter 54 x 85.5 mm 2 x 2 for carton
One removable flat bed unit for label die cut or carton
Labelling systems, label/RFID applicator x 1
Magnetic stripe hot stamp
UV flexo 67z and 8 rollers in different widths
UV 75z with 11 rollers in different widths
Video link: http://youtu.be/5DuyerKg4Q0
Our Ref: V54651

This slideshow requires JavaScript.

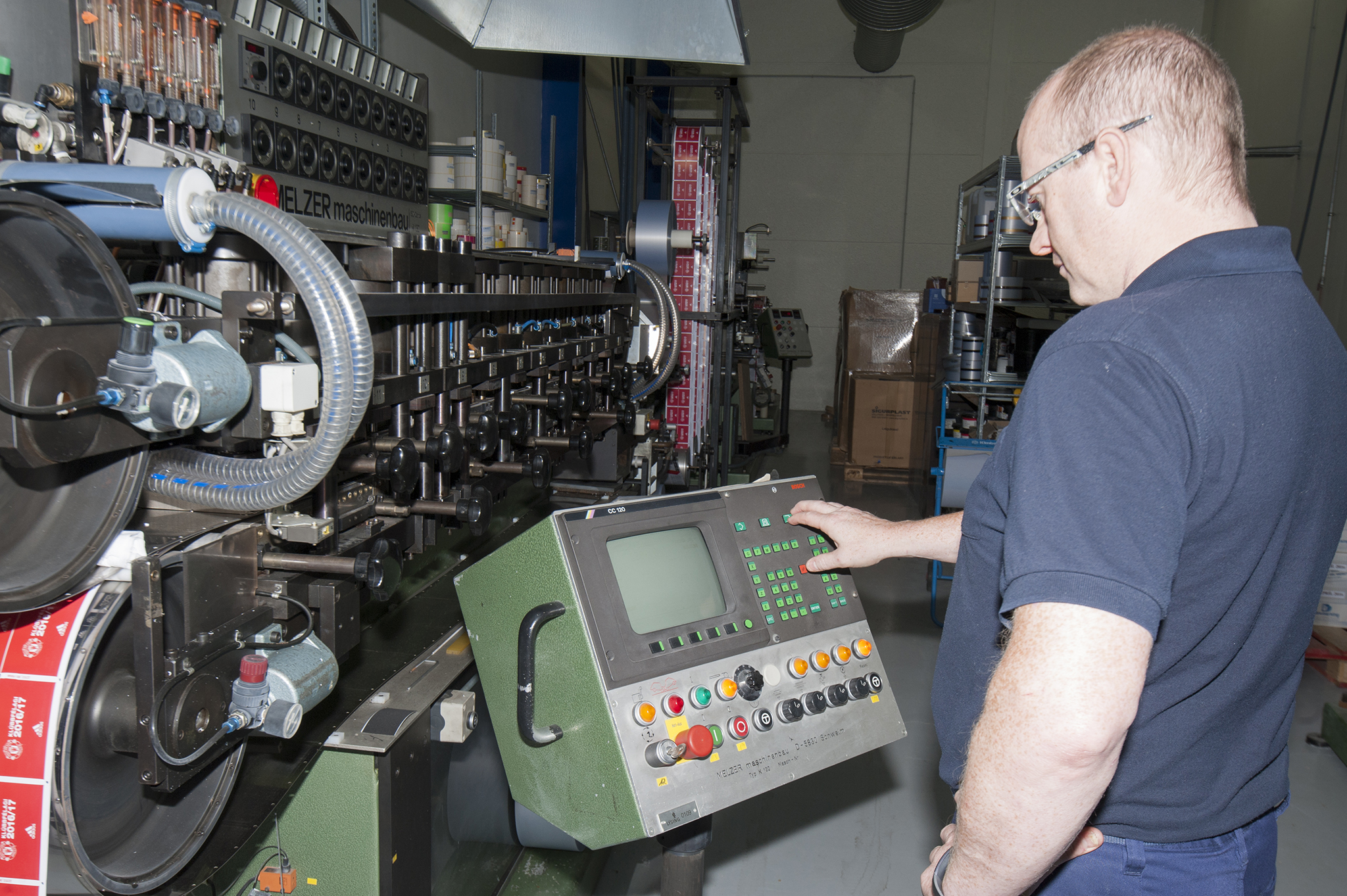

MELZER 130 PLASTIC CARD PRINTING PRESS
Year of Manufacture: Circa 2001

UV letterpress 4 colours
Print screen: 133dpi
Print speed: 30-40 meters per minute
Material width: 130mm
Thickness: up to 300mic
4 cards in one hit

Laminator press
Gloss surface laminating belt installed
Material overlay thickness: 80-100mic
Die cut with hot stamp, total two hot stamp units
Speed: 2000 cards per hour

Magnetic stripe press
Speed: 1000 cards per hour
Magnetic stripe width: 12.7mm installed, adjustable

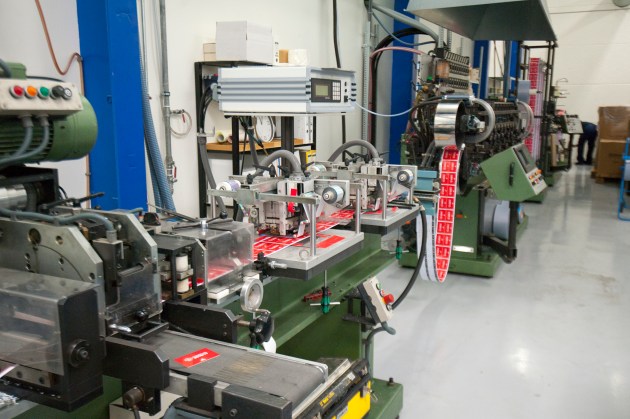

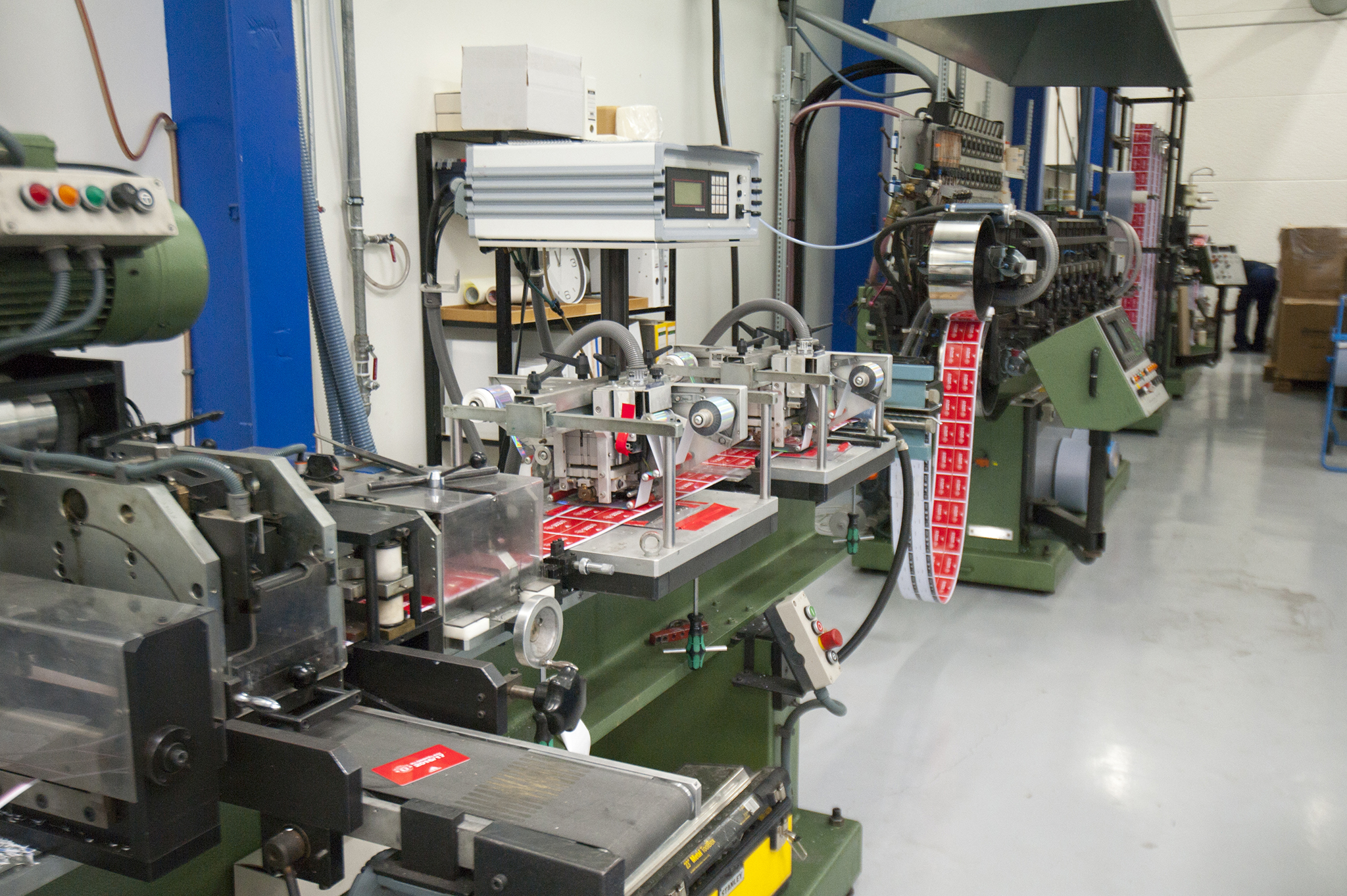

Melzer Plastic Card Production

Melzer Plastic Card Production

Melzer Plastic Card Production

Melzer Plastic Card Production

If you are interested in the above machine please contact Andrew Lapish at sales@polygraphica.com for further information and photographs.

If you are looking for a machine but the above are not to your required specification please click the following link to view alternative machines we have available. Polygraphica Label Division

If you require any further information regarding any of the above machines or services Polygraphica provide please do not hesitate to contact me.

About Polygraphica
Supplier of used machinery. We buy and sell used machinery for a wide range of industries including flexographic printing, rotogravure printing, label printing and converting, paper bag and sack production and tissue converting to name a few.
