For Sale: Goebel Optiprint 520 Press

Polygraphica have available for sale the following press.

It can be seen in production until the end of February 2014 and is available for dismantling and shipment from begining of March 2014.

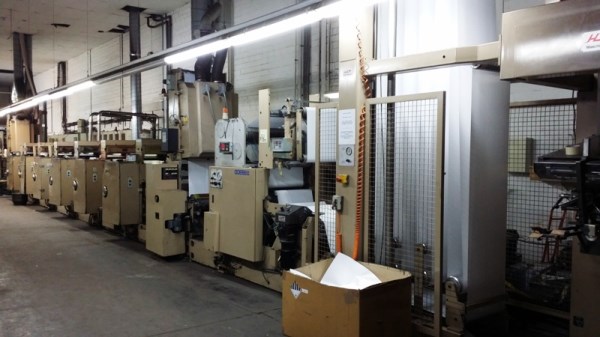

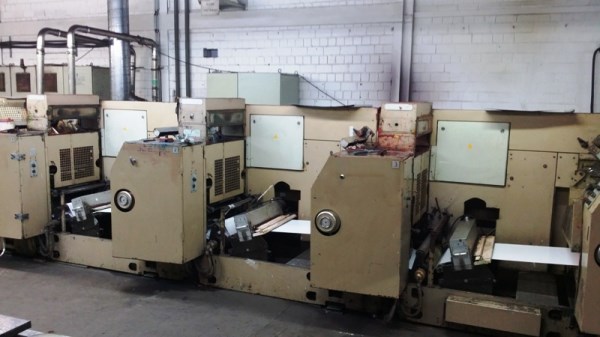

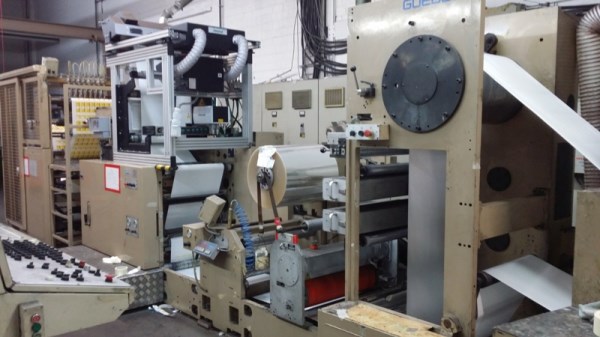

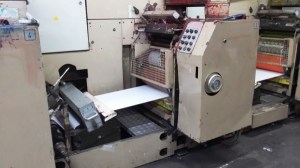

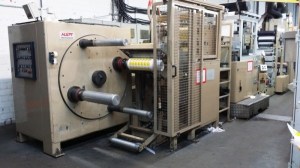

GOEBEL OPTIPRINT 520 WEB OFFSET PRESS
Year of manufacture: 1996

Number of colours: 8
Configuration: 6 offset stations & 2 flexographic stations

1 in front incl. reverse print capability, 1 at end for varnish-lamination
Maximum web width: 515mm
Maximum print width: 496mmmm
Print repeat: 16”- 28”
Automatic splice and roll change in unwind & rewind, HSM
Maximum roll diameter: 1000mm
In-line slitting
In-line lamination
Kelva web cleaner
Corona Vetaphone
Separate electric hot-air drying for both flexo stations
Plus 2 UV-dryers after last flexo for UV varnish & lamination
Eltromat Electronic system incl. Camera, automatic register control, remote colour adjustment and automatic defect detection
Total machine length: 32 meters

14 sets (6 in each set) of offset cylinder cassettes, in following repeat sizes:
491.0, 524.8, 550.3, 575.6, 584.2, 601.1, 618.0, 635.0, 643.4, 651.8, 660.4, 677.2, 694.2, 711.2mm

Supplies with following related auxiliary equipment:-
Chiller
Edge trim exhaust and compactor
Doctoring machine Stanford
Plate making equipment
Roll handling with cranes
QC- equipment- Etc

If you are interested in this machine please contact Andrew Lapish on +44 1924 200444 or email sales@polygraphica.com

http://www.polygraphica.com

Goebel Optiprint 520

Goebel Optiprint 520

Goebel Optiprint 520

Goebel Optiprint 520

Goebel Optiprint 520

Goebel Optiprint 520

Goebel Optiprint 520

Goebel Optiprint 520

Goebel Optiprint 520

Goebel Optiprint 520

About Polygraphica
Supplier of used machinery. We buy and sell used machinery for a wide range of industries including flexographic printing, rotogravure printing, label printing and converting, paper bag and sack production and tissue converting to name a few.
