For Sale: Apollo 330Z – 8 Colour Flexo Press

Polygraphica are pleased offer our demonstration Apollo 330Z Press at a very attractive price.

The press is as new and has only been used as a demonstrator.  Immediately available the press could be installed and running in your premises within 30 days.

APOLLO 330Z 8 COLOUR FLEXOGRAPHIC LABEL/PACKAGING PRINTING PRESS

Web width: 330mm – Printing width: 320mm
Gearing: 1/8″ or specify
1 x Unwind unit to take reels of 1200mm diameter on 76mm diameter pneumatic shaft with power lift
1 x Infeed unit allowing a range of materials from 20 microns to 350 microns.
1 x Independent electronic register/auto tension control.
1 x Electronic web guide with electronic sensing.
8 x Variable flexographic print towers to print from 8″ to 20″ circumference with manual 360° registration.
– Each unit can be individually disengaged if required.
– Design allows different materials to run through the print units without exerting pressure on the drive gears.
– User friendly adjustable platform and tool less assembly system for quick change of anilox and print cylinders
– Motorised control for continuous running of anilox and metering rollers when water based inks are used.

1 x UV lamp with electronic operator panel and step less power enabling curing.
8 x IR drying units.
1 x Turn bar unit with pneumatic bars.
1 x Laminating station.
1 x Matrix unwind shaft to take reels up to 500mm diameter.
3 x Die cutting station to take magnetic or engraved die cutting cylinder up to 20″ repeat.
1 x Rotary slitting station for film, paper, board and industrial laminates.
2 x Product rewinds – one rewinds reels up to 1200mm diameter and one to rewind reels up to 650mm
1 x Sheeting conveyor table, with independent seed control and drive and stacking plate
1 x Special plate mounter with optical magnifier.
1 x Video inspection unit
1 x Corona unit, single sided

All helical gears on main drive.

24 print cylinders (3 sets) included in price (88T, 96T, 120T)
8 ceramic anilox rollers (1 set) included in price, up to 600dpi

Machine Dimensions: length 4985 x width 1080 x height 2552mm

1 year Warranty: The goods offered under this quotation are warranted free from defects in design, material and construction for a period of 12 months from the date of dispatch. Should a component fail during the 12 month warranty period it will be exchanged free of charge. The warranty is for parts only and does not include labour, travelling or delivery.

Optional extras:
Anilox cylinders from 250dpi to 650dpi €1100.00 each
Anilox cylinders from 650dpi plus €1230.00 each
Print cylinders from 8” to 20” circumference € 350.00 each
Die cutting cylinders from 8” to 20” circumference €1475.00 each
Additional UV units €7450.00 each
Ultra sonic anilox cleaner, model US660 €5500

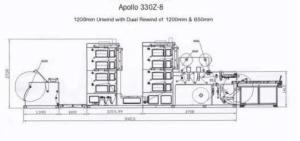

Apollo 330Z Label Press

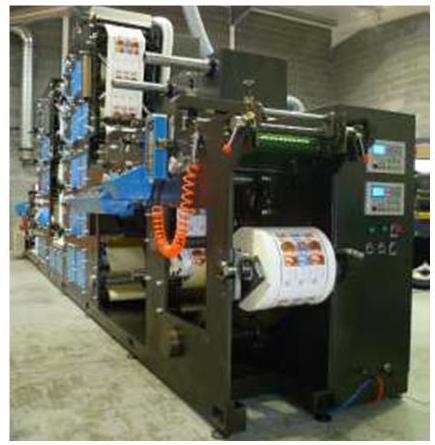

Apollo 330Z Label Press

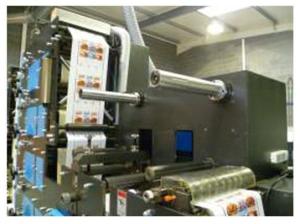

Apollo 330Z Label Press

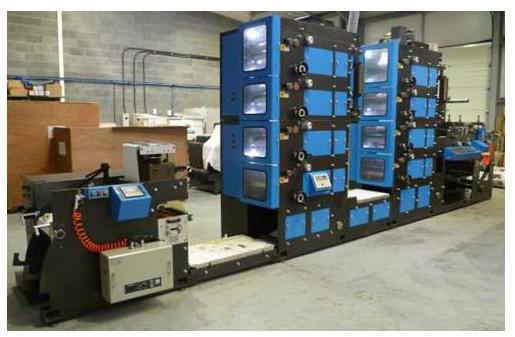

Apollo 330Z Label Press

Apollo 330Z Label Press

Apollo 330Z Label Press

Apollo 330Z Label Press

Apollo 330Z Label Press

Please contact Andrew Lapish at sales@polygraphica.com for further information.

About Polygraphica
Supplier of used machinery. We buy and sell used machinery for a wide range of industries including flexographic printing, rotogravure printing, label printing and converting, paper bag and sack production and tissue converting to name a few.
