For Sale: Holweg CP24TS and Holweg CP2 Bag Machines

Polygraphica are able to offer the following two Holweg Heat Seal Bag Machines.

Both machines were reconditioned and upgraded to servo machines in 2013 / 4 and are in superb, as new condition.

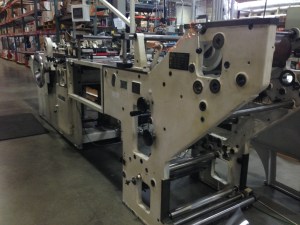

HOLWEG CP24TS HEAT SEAL BAG MACHINE
Year of manufacture: 1992

Bag width range: 70-260mm, 2.76″-10.25″
Bag length range: 140-600mm, 5.52″-23.64″
Gusset depth: 10-50mm, .39″-1.97″
Drum: 4 gripper
Photoelectric eye: pre printed rolls, no print capability
Electrics: 400vac, 3ph, 50hz, 7kw
Products: strait crimp seal, single fold with glue, single fold with heat
Materials: Paper, Film, OPP Laminations
Output: Film 75-100BPM, Paper/Film 175BPM

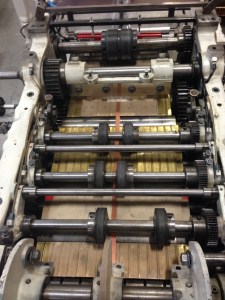

HOLWEG CP24TS HEAT SEAL BAG MACHINE

HOLWEG CP24TS HEAT SEAL BAG MACHINE

HOLWEG CP24TS HEAT SEAL BAG MACHINE

HOLWEG CP24TS HEAT SEAL BAG MACHINE

HOLWEG CP24TS HEAT SEAL BAG MACHINE

HOLWEG CP24TS HEAT SEAL BAG MACHINE

HOLWEG CP24TS HEAT SEAL BAG MACHINE

HOLWEG CP24TS HEAT SEAL BAG MACHINE

HOLWEG CP24TS HEAT SEAL BAG MACHINE

HOLWEG CP24TS HEAT SEAL BAG MACHINE

HOLWEG CP24TS HEAT SEAL BAG MACHINE

Holweg CP24TS Heat Seal Bag Machine

Holweg CP24TS Heat Seal Bag Machine



HOLWEG CP2 HEAT SEAL BAG MACHINE

Bag width range: 70-260mm, 2.76″-10.25″
Bag length range: 140-600mm, 5.52″-23.64″
Gusset depth: 10-50mm, .39″-1.97″
Upgraded drum to 4 gripper
Photoelectric eye: pre printed rolls, no print capability
Electrics: 400vac, 3ph, 50hz, 7kw
Products: single fold with glue or single fold with heat
Materials: Paper, Film, OPP Laminations
Output: Film 75-100 BPM, Paper/Film 175 BPM

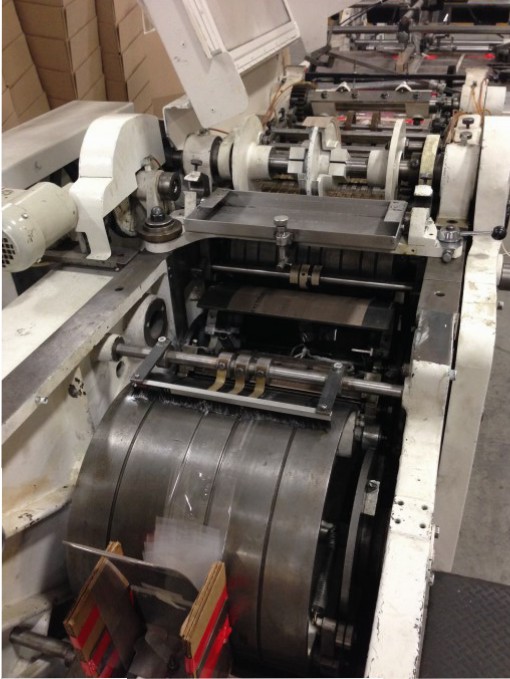

55669 - CP2TS Delivery

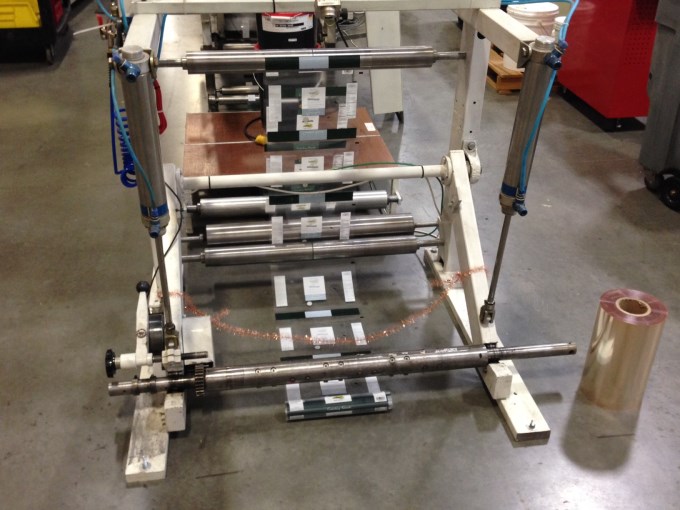

55669 - CP2TS Unwind

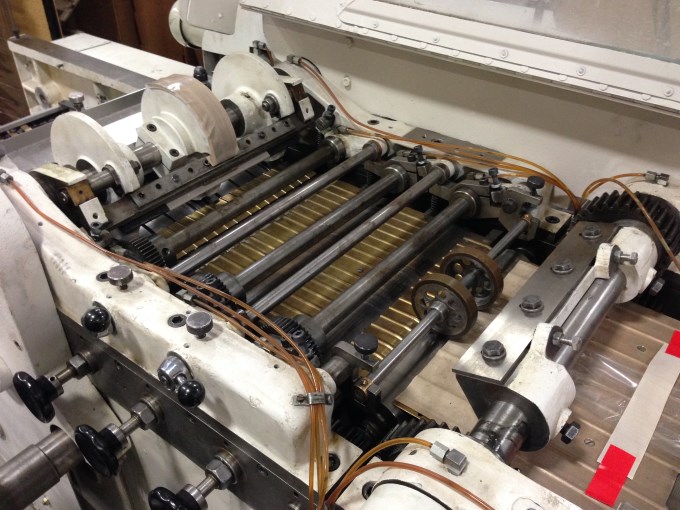

55669 - CP2TS Tube cut

55669 - CP2TS Touch Control

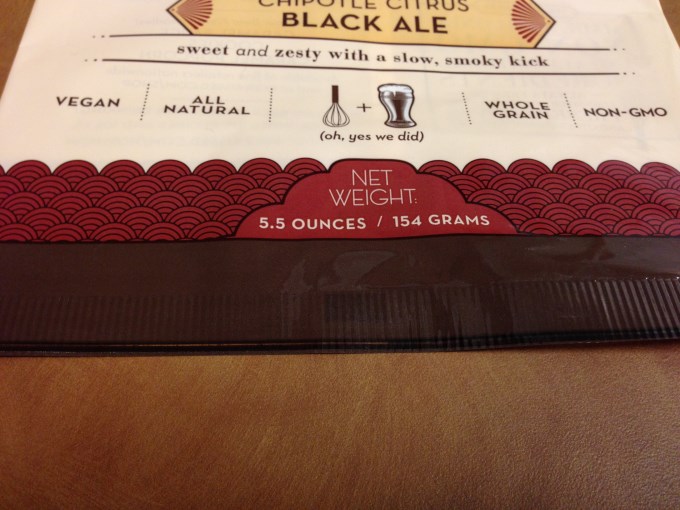

55669 - CP2TS straight heat seal bottom

55669 - CP2TS side gusset

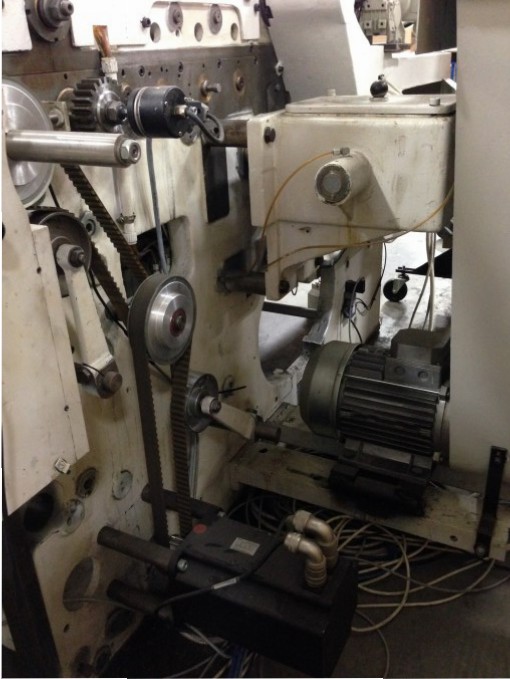

55669 - CP2TS Motor

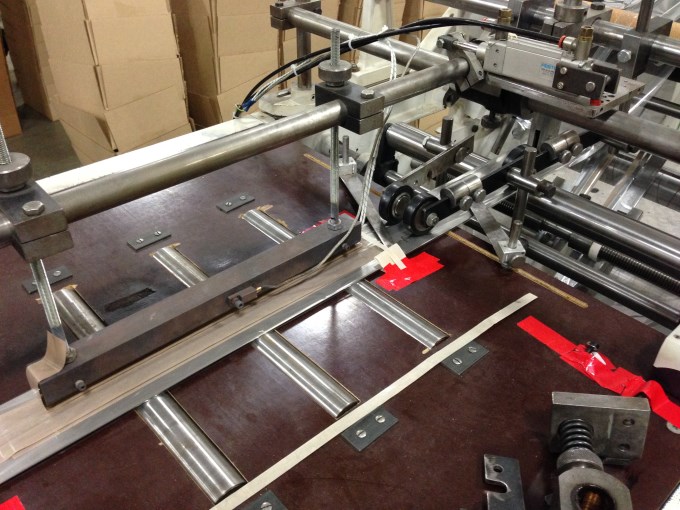

55669 - CP2TS Long Seal

55669 - CP2TS Infeed

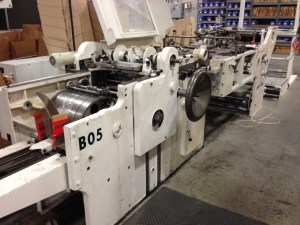

55669 - CP2TS Frame

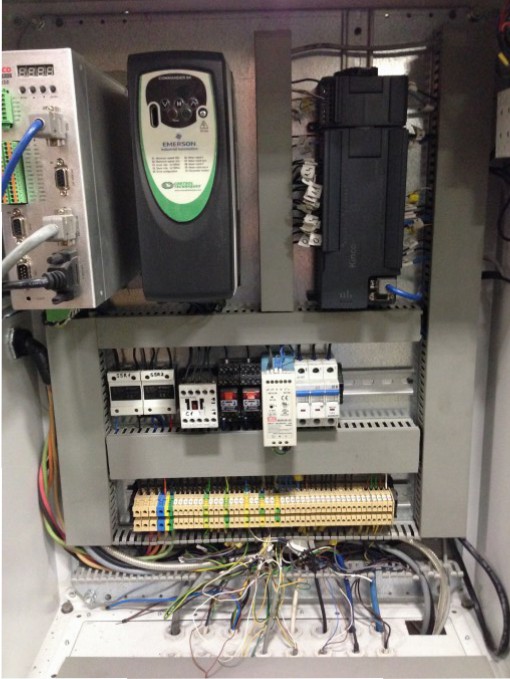

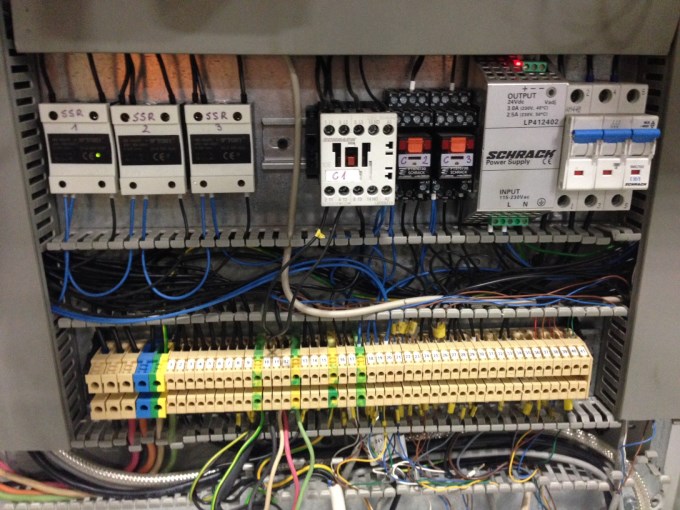

55669 - CP2TS Electrical
If you would like more information, please do not hesitate to contact Andrew Lapish at sales@polygraphica.com and I will supply you with fuller details.
