Cason Duplex Slitter – Immediately Available

Polygraphica have immediately available the following Cason Duplex Slitter for Aluminium. Manufactured only in 2013, the machine has had very little use and is in as new condition.

The model uses the central drum roll layout, allowing you to rewind a wide range of materials in narrow bands up to 800 mm diameter, whilst maintaining high speeds and stability managed by a hydraulic system.

This machine is developed for manufacturers and converters in the aluminium industry when there is a need to produce narrow bands with high diameters and high rewinding accuracy.


CASON DUPLEX CENTRE DRIVEN SLITTER
Year of manufacture: 2013

Maximum parent roll width: 900mm
Maximum parent roll diameter: 1000mm
Maximum finished bobbin diameter: 800mm
Maximum finished bobbin width: 50mm
Internal parent roll cardboard diameter: 76 – 152mm
Maximum machine speed: 500metre / min
Maximum pressure, minimum compressed air: bar 6-7
Minimum oil circuit pressure: 80 bar
Installed electric power: 35kw
Voltage: 400
Frequency: 50hz
Material tickness: ≥10μ
Materials: Aluminium Foils and a wide range of materials in narrow bands
Finished roll removal system
Trim extraction system

Please contact me by phone +44 1924 200444 or by email: sales@polygraphica.com if you would like any further information, including photographs, on the above machine.

If the above machines are not to your exact requirements, please check our website for other slitter rewinders we have available.

If you require any further information any services Polygraphica provide please do not hesitate to contact me.

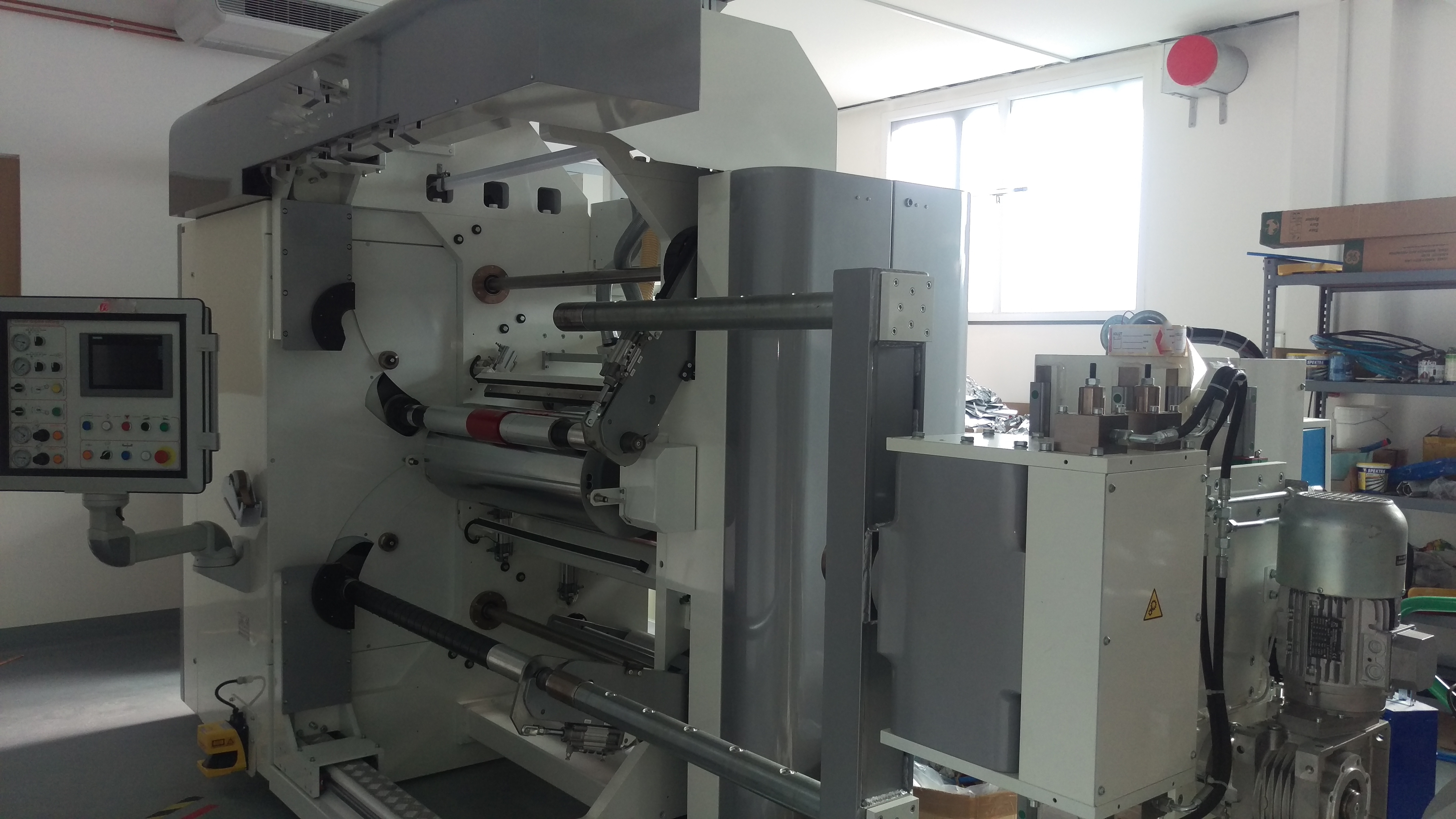

Cason Duplex Slitter

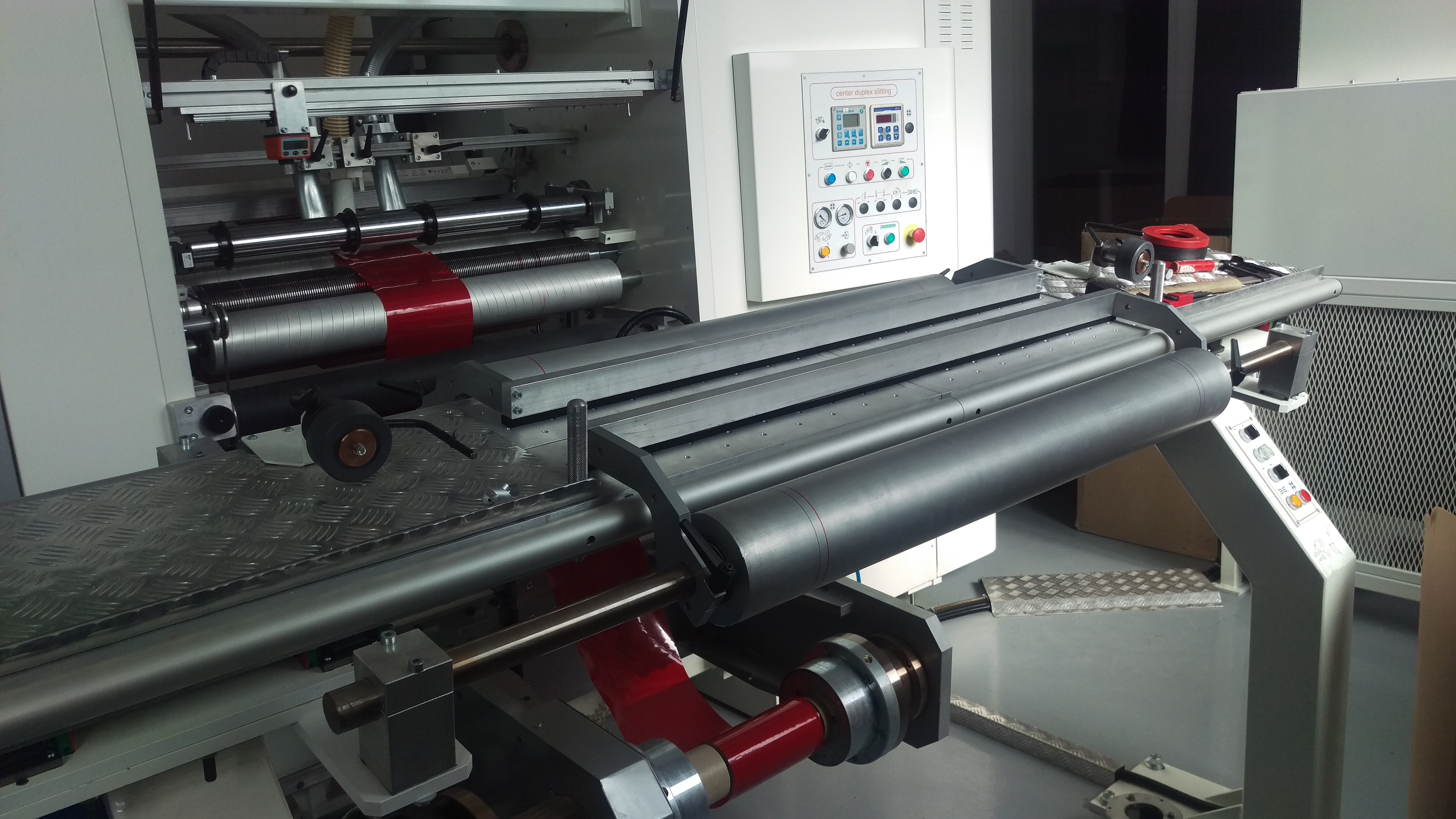

Cason Duplex Slitter
