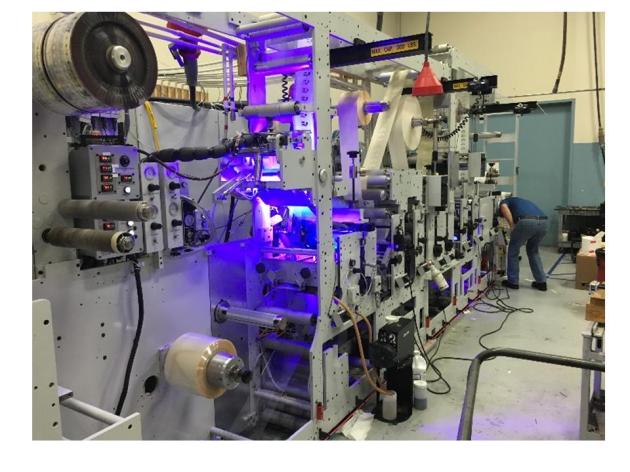

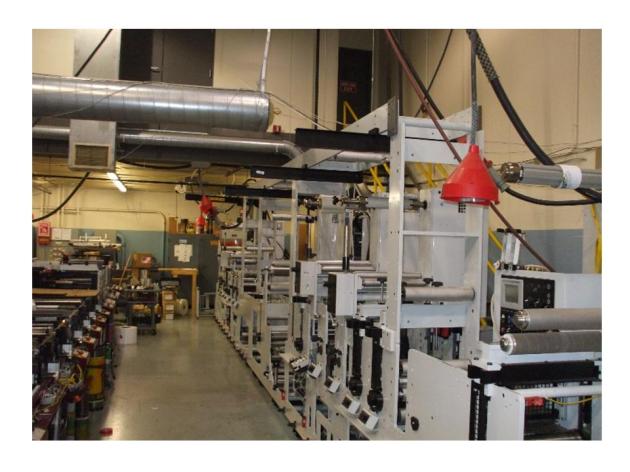

Mark Andy 2200H – 12 Colour Full Servo Label Press

Polygraphica have available for immediate delivery the following, unique Mark Andy 2200H Full Servo Label Press.

Primarily used for development of new product ideas, the press has not been used in full production therefore is in excellent condition and has no signs of any major wear to any parts.

The press offers you an opportunity to develop and produce unique label products, giving you competitive advantage over all your competitors, allowing for increased profitability and a quick return on your investment.

MARK ANDY 2200 H 13” 12 COLOUR, FULL SERVO, FILM & PAPER PRESS      Year of manufacture: 2009

Primary machine and motion control
Shaftless servo drive unit and control with 750fpm maximum line speed, 240volt 60hz system
Full Rexroth servos throughout, 29 in total
Alan Bradley control
40” floor mounted cantilever unwind with transducer closed loop infeed pacing
Corotec Corona treater with ozone destruction unit
Ultrasonic sensor web guide for film
Additional 40” floor mounted cantilever unwind with DC motor drive c/w a servo driven digitally Controlled auxiliary web tension module for ultra thin films
4 x aerial mounted digitally tension controlled 32” capacity laminator/unwinds
Master control/sheeting module c/w closed loop exit pacing with transducer feed back
One remote human machine interface
2 x 40” floor mounted servo driven rewinds with taper tension control
Rider roll on 1st rewind
Length: approximately 48feet, 14.5metres
Manuals are available

Printing, Drying, Curing, & Registration
12 x print stations with Teflon coated idlers for film
12 x plate cylinders 12” repeat
16 x anilox rolls, 2 SMYK sets, plus assorted higher BCM’s for coating applications
1 x peristaltic ink pump, 2 gallon capacity, for gravure chamber
9 x hot air drying positions with enhanced hot air drying tunnels for film
2 x GEW maxim cool cure UV lamps 400w/in with UVT MLS UV power supply system
6 line water chiller for UV LED lamps
BST Powerscope 3000 vision system with 2 cameras
Capability for electronic registration control ERC + constant error correction CEC
Mark Andy 8” band width slot die coating head, ambient to +850c
Delpro 8” band width gravure print/coating chambered doctor blade unit, adjustable top blade angle

Die Cutting, Scoring, & Waste
7 x standard die cut stations/positions
1 x deep die station/position, special single extended die cut module, optional
5 x 16″ repeat magnetic flexi die cylinders
4 x pairs of Rotometrics hydro jacks
3 x die hoists, fixed transverse beam
1 x die hoist, swinging beam
5 x 30” aerial mounted waste rewinds
2 x Rotometrics RD scorers
2 edge trim/slitters

Additional Web Handling
Turn bar
Delam relam unit
Multiple web gantry transport system
Additional gantry mounted ultrasonic sensor web guide for film
Full over and under idler roll sets
It can process supported and unsupported films and multiple webs (5) in thicknesses from 8mil down to 0.5mil
A uniquely flexible and capable machine

The machine has been used for development of new products and innovations, it has never been used for production.

The press is available for immediate shipment in its present format however the press can be reconfigured to any specific requirements.

Please contact Andrew Lapish on +44 1924 200444 to discuss the capabilities and opportunites of this unique Mark Andy 2200 Label Press.
