For Sale: ABG Omega Digicon Series 2

Polygraphica can offer for immediate sale the following ABG Omega Digicon Series 2.

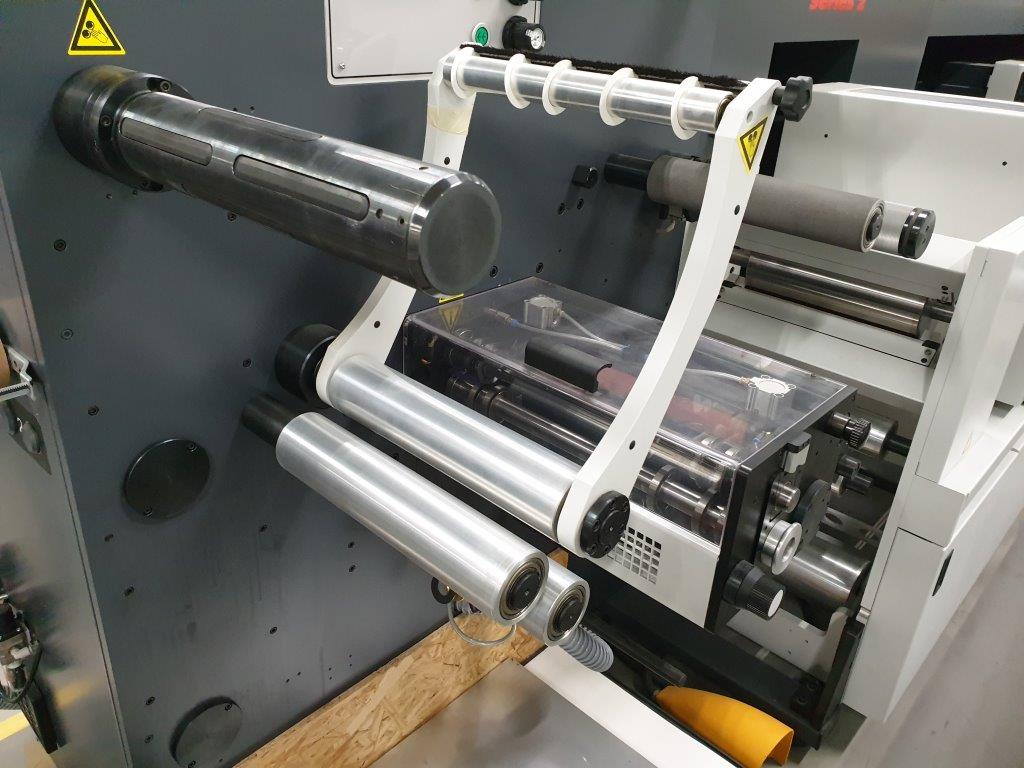

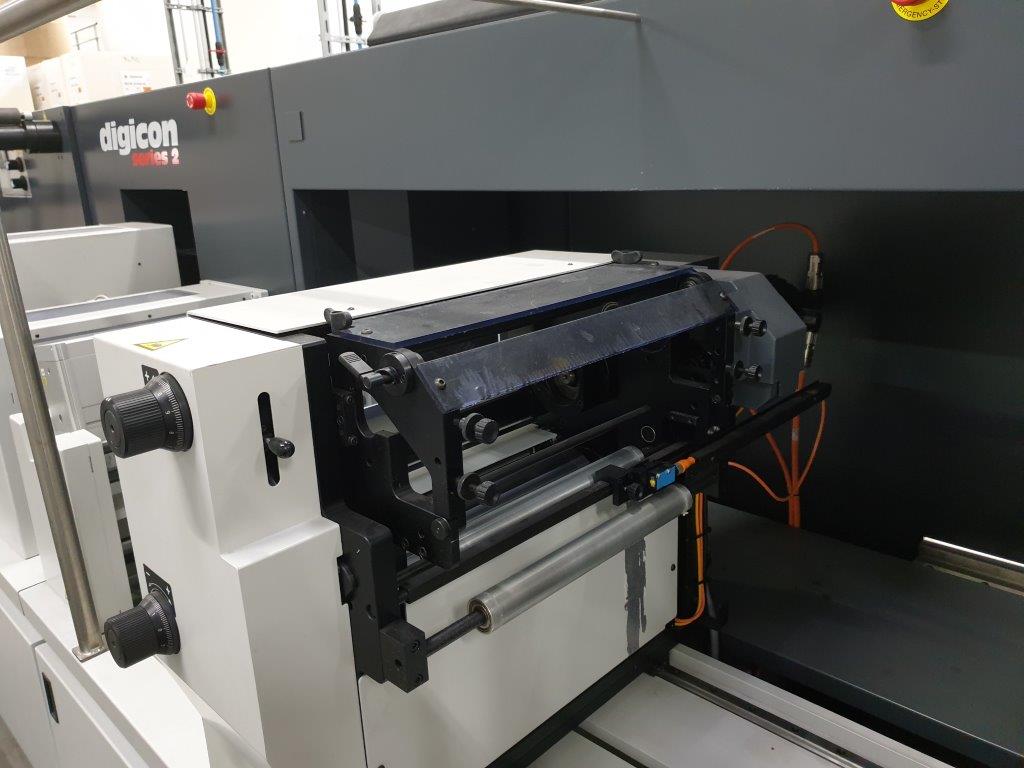

The Digicon 2 was only installed in January 2015 and is in excellent condition (as can be seen from the photographs)

There is a great demand for Digicon 2 machines currently so you are advised to contact Polygraphica as soon as possible to register your interest.

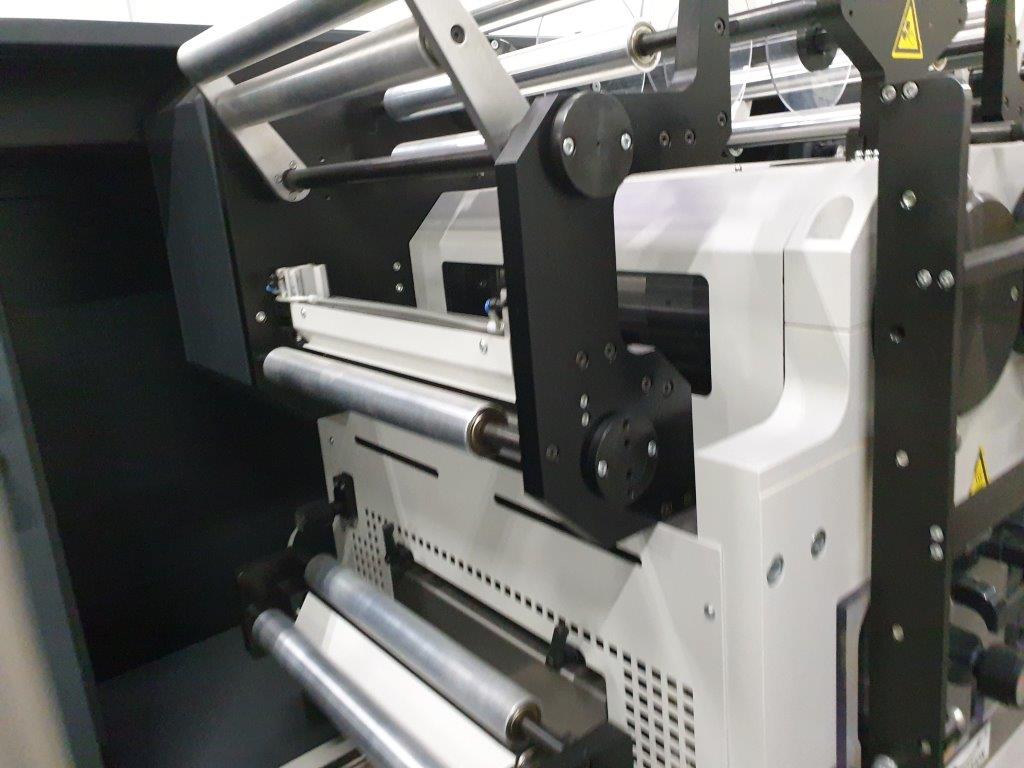

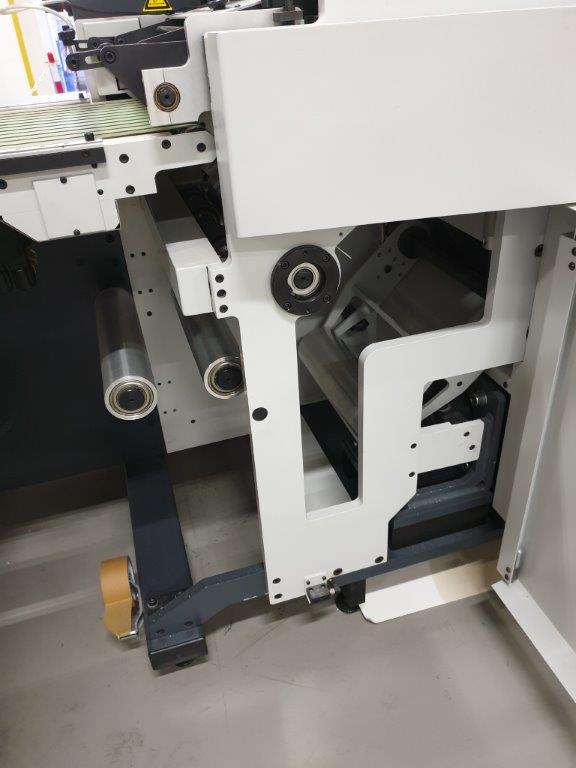

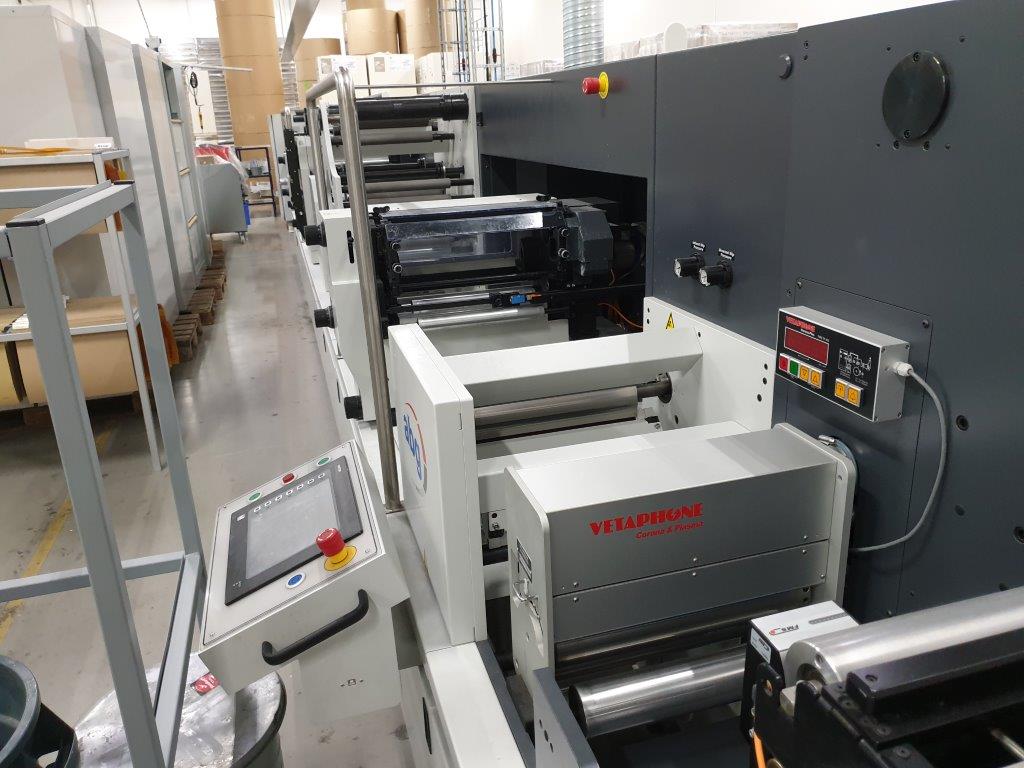

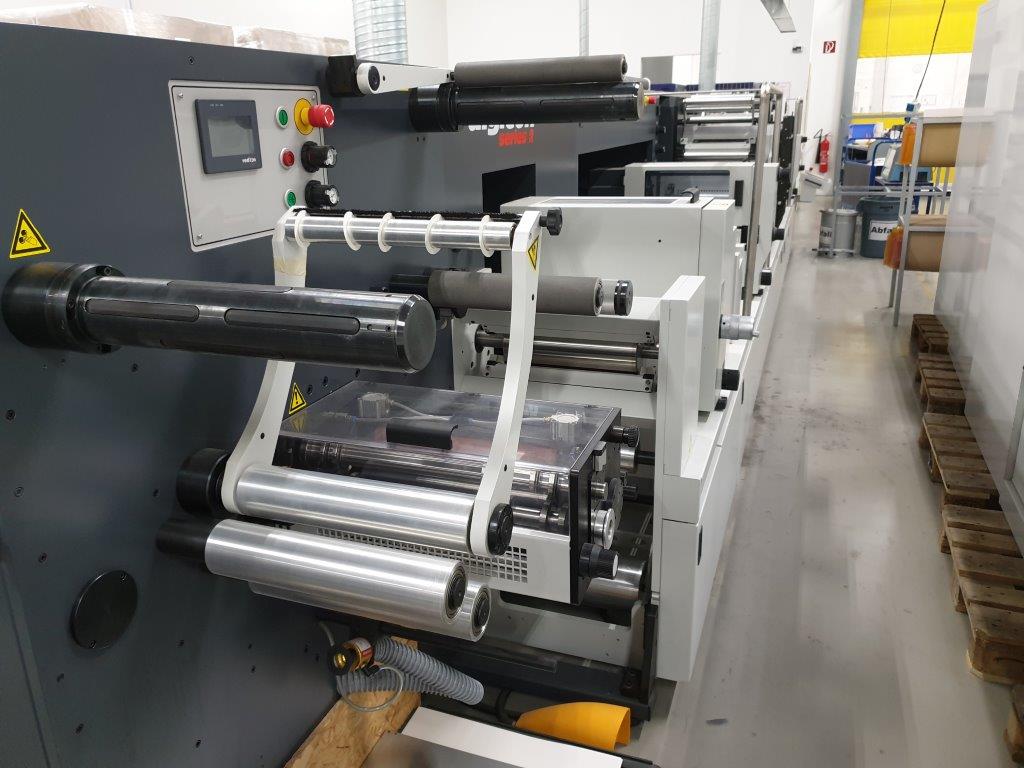

ABG OMEGA DIGICON SERIES 2 CONVERTER
Year of manufacture: 2014, installed January 2015

Technical specifications:
Web width: 200-330mm
Maximum speed in semi rotary mode: 55m/min
Maximum speed in rotary mode: 90m/min

Unwind for rolls up to: 700mm diameter
Pull out station with pneumatic pressure monitoring
Servo driven feed station
First semi rotary flexographic printing unit
Line sensor
Lamination unit for lamination and cold foil stamping
Plate cylinder with lifting device
UV drying system: GEW E2C
Dancer roller drive module
Semi rotary punch system
Semi rotary pull out station
Waste rewind
Slitting unit
Rewind
Servo driven flat hot foil embossing unit
Mid press pulling roller
Second semi rotary flexographic printing unit
Hot air drying system
Additional flexo cassette
Gapmaster
Rewind adapter: 152mm diameter

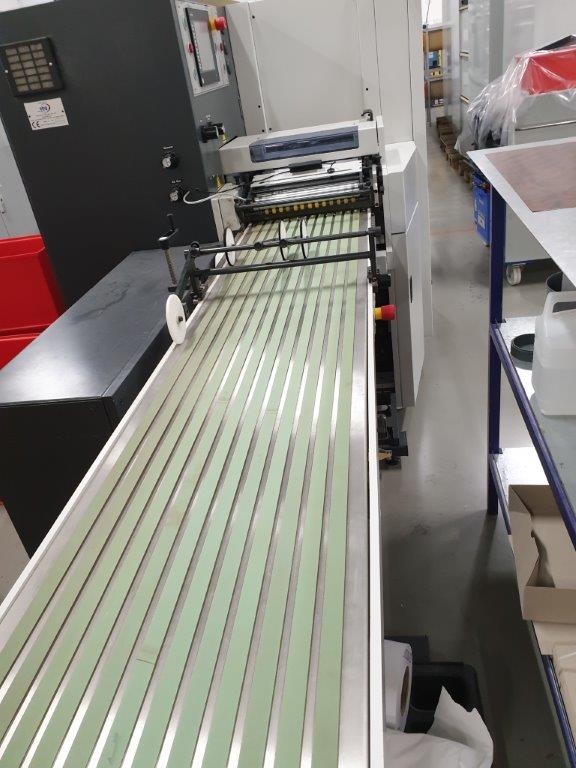

Trim extraction
KAMA flat punch for folding cartons

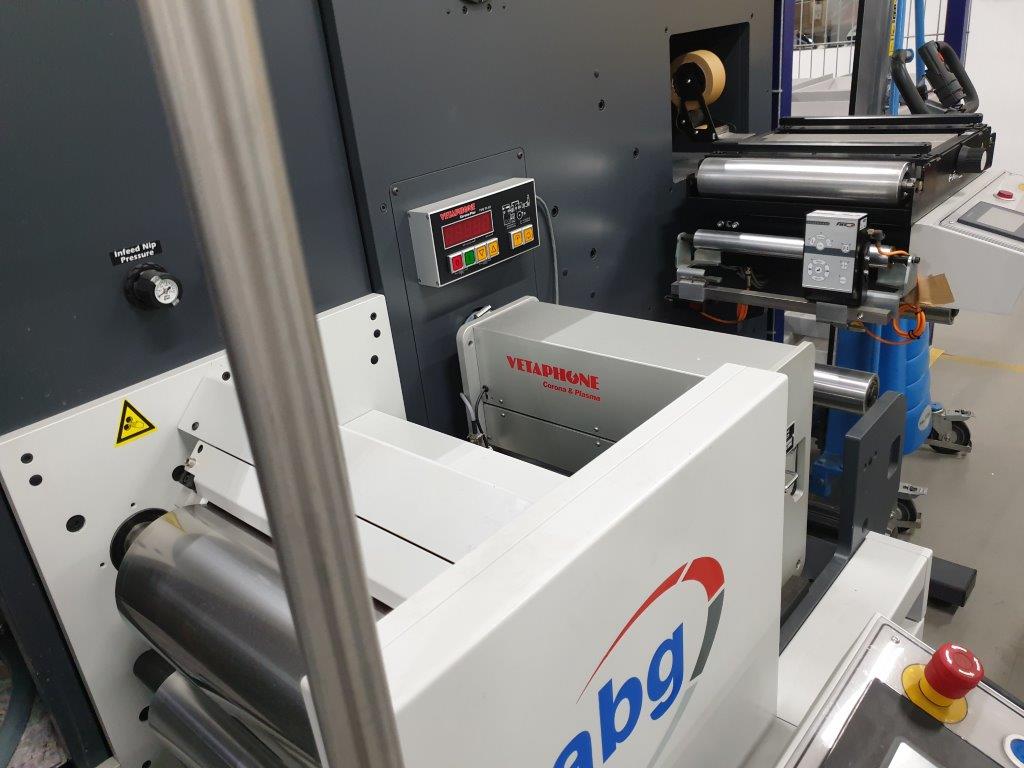

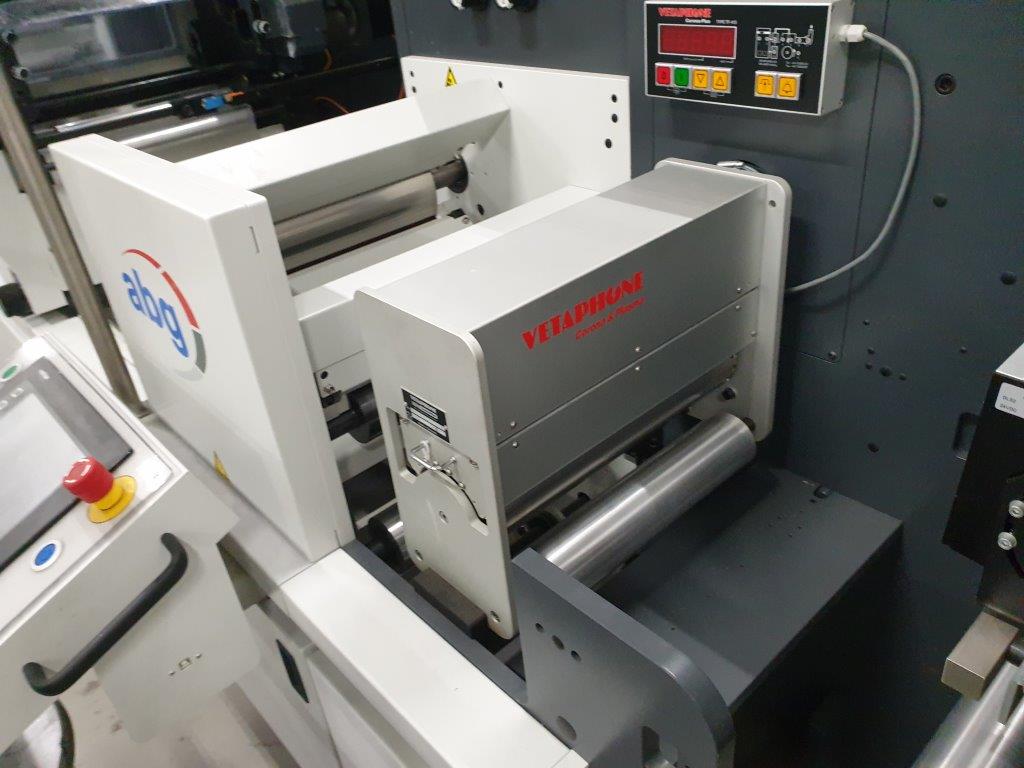

Corona treatment station
Touch screen panel

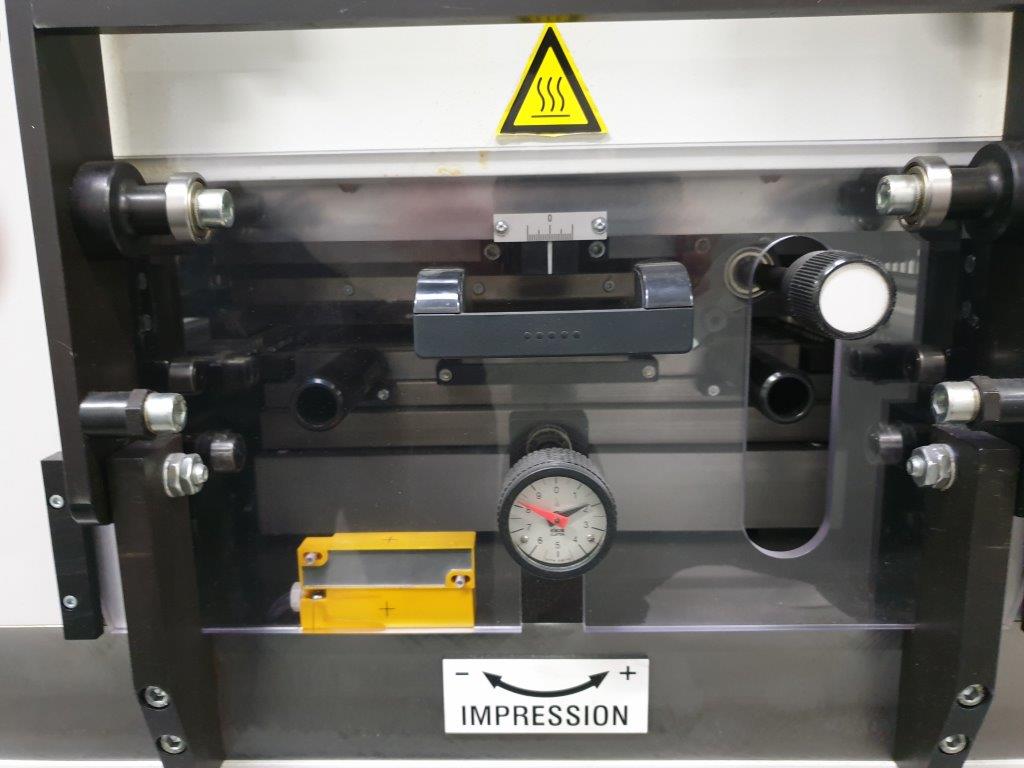

Flexo printing unit
Semi rotary
Anilox roller: 200lines/inch
Printing cylinder: 482.6mm
Minimum repeat length: 50.8mm
Maximum repeat length 457.2mm
Transverse adjustment of the web: +- 10mm

UV drying – GEW E2C l low energy
Length of the arc: 380.1mm
Lamp power bis: 140w/cm

Punching station
Transverse adjustment of the web: +- 10 mm
Repeat length of the punching cylinder: 482.6mm
Minimum repeat length: 50.8mm
Maximum repeat length in semi rotary mode: 457.2mm
Maximum repeat length in rotary mode only: 482.6mm

KAMA flat punch
Web width: 180-330mm
Feed: 125-508mm
Maximum speed: 10.000hub/hour
Blade height: 23.8mm
Maximum material thickness: 500microns

Rewind
Maximum roll diameter: 600mm for above shaft
Maximum roll diameter: 700mm for lower shaft
Diameter of the rewinding shaft: minimum 25.4mm, maximum 76.2mm
Slitting
Minimum cutting width: 15mm
Pneumatic rewinding shaft: 76.2mm
Cutting blades x 5

Label counter – Labels, feet, metres

For more information on the ABG Digicon 2, please contract Andrew Lapish on +44 1924 200444 or email: sales@polygraphica.com

Prefer WhatsApp?  Message us +44 7938 998081.





About Polygraphica
Supplier of used machinery. We buy and sell used machinery for a wide range of industries including flexographic printing, rotogravure printing, label printing and converting, paper bag and sack production and tissue converting to name a few.
