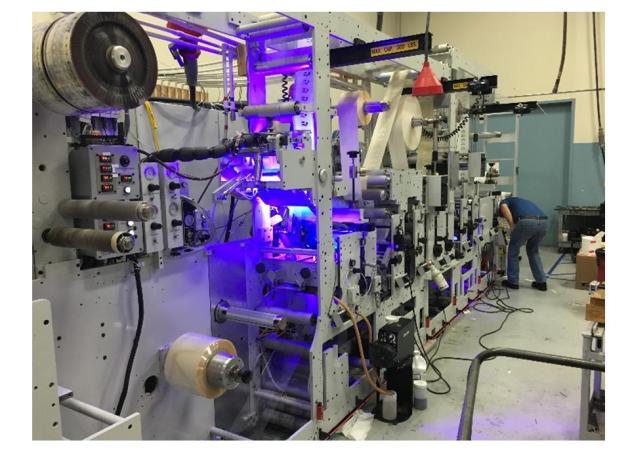

Mark Andy 2200H – 12 Colour Full Servo Label Press

Polygraphica have available for immediate delivery the following, unique Mark Andy 2200H Full Servo Label Press.

Primarily used for development of new product ideas, the press has not been used in full production therefore is in excellent condition and has no signs of any major wear to any parts.

The press offers you an opportunity to develop and produce unique label products, giving you competitive advantage over all your competitors, allowing for increased profitability and a quick return on your investment.

MARK ANDY 2200 H 13” 12 COLOUR, FULL SERVO, FILM & PAPER PRESS      Year of manufacture: 2009

Primary machine and motion control
Shaftless servo drive unit and control with 750fpm maximum line speed, 240volt 60hz system
Full Rexroth servos throughout, 29 in total
Alan Bradley control
40” floor mounted cantilever unwind with transducer closed loop infeed pacing
Corotec Corona treater with ozone destruction unit
Ultrasonic sensor web guide for film
Additional 40” floor mounted cantilever unwind with DC motor drive c/w a servo driven digitally Controlled auxiliary web tension module for ultra thin films
4 x aerial mounted digitally tension controlled 32” capacity laminator/unwinds
Master control/sheeting module c/w closed loop exit pacing with transducer feed back
One remote human machine interface
2 x 40” floor mounted servo driven rewinds with taper tension control
Rider roll on 1st rewind
Length: approximately 48feet, 14.5metres
Manuals are available

Printing, Drying, Curing, & Registration
12 x print stations with Teflon coated idlers for film
12 x plate cylinders 12” repeat
16 x anilox rolls, 2 SMYK sets, plus assorted higher BCM’s for coating applications
1 x peristaltic ink pump, 2 gallon capacity, for gravure chamber
9 x hot air drying positions with enhanced hot air drying tunnels for film
2 x GEW maxim cool cure UV lamps 400w/in with UVT MLS UV power supply system
2 x Phoseon LED UV lamps, 16w/cm2
1 x Phoseon LED UV lamps, 8w/cm2 for pinning
6 line water chiller for UV LED lamps
BST Powerscope 3000 vision system
Capability for electronic registration control ERC + constant error correction CEC
Mark Andy 8” band width slot die coating head, ambient to +850c
Delpro 8” band width gravure print/coating chambered doctor blade unit, adjustable top blade angle

Die Cutting, Scoring, & Waste
7 x standard die cut stations/positions
1 x deep die station/position, special single extended die cut module, optional
5 x 16″ repeat magnetic flexi die cylinders
4 x pairs of Rotometrics hydro jacks
3 x die hoists, fixed transverse beam
1 x die hoist, swinging beam
5 x 30” aerial mounted waste rewinds
2 x Rotometrics RD scorers
2 edge trim/slitters

Additional Web Handling
Turn bar
Delam relam unit
Multiple web gantry transport system
Additional gantry mounted ultrasonic sensor web guide for film
Full over and under idler roll sets
It can process supported and unsupported films and multiple webs (5) in thicknesses from 8mil down to 0.5mil
A uniquely flexible and capable machine

The machine has been used for development of new products and innovations, it has never been used for production.

The press is available for immediate shipment in its present format however the press can be reconfigured to any specific requirements.

Please contact Andrew Lapish on +44 1924 200444 to discuss the capabilities and opportunites of this unique Mark Andy 2200 Label Press.Mark Andy 2200H Mark Andy 2200H

For Sale: 3 x Mark Andy 2200 UV Label Presses

Polygraphica have exclusively available the following 3 Mark Andy 2200 UV Flexo Label Presses.

MARK ANDY 2200H – 8 COLOUR LABEL PRESS  –  Year of Manufacture: 2006

Web width: 10”
Single unwind
Standard unwind and infeed
Working hours only: 9482, April 2015
8 UV flexo print stations
GEW E Brick UV
Turn bar
Delam/relam
3 die stations
Standard rewinds
Video web inspection                          Click to view video: https://youtu.be/uwgL1tVmosE



MARK ANDY 2200 10G LABEL PRESS  –  Year of Manufacture: 2003
Web width: 10”
Standard unwind and infeed
Working hours only: 14,333 April 2015
8 UV flexo print stations
GEW VCP 30 UV systems
Turn bar
Cold foil system
3 die stations
Tectonic video web inspection                Click to view video: https://youtu.be/y8-7FVYK00A



MARK ANDY 2200 10E LABEL PRESS   –   Year of manufacture: 1995
Web width: 10”
Standard unwind and infeed
Working hours: 25,988 April 2015
6 UV flexo print stations
GEW UV
Turn bar
Video web inspection                        Click to view video: http://youtu.be/CVdT1wFcVug

For further information please contact sales@polygraphica.com or telephone +44 1924 200444.



Used Mark Andy Label Presses

Polygraphica have available the following range of used Mark Andy Label Presses. All the presses are immediately available and can be seen in production prior to any purchase.

MARK ANDY LP3000, 17”, 8 COLOUR FULL UV PRESS
Year of Manufacture: 2007 (Approx Running hours: 6757)
Automatic web guide
Corona treater
Web cleaner and anti static
Web reverse unit
Delam/relam unit
UV Laminating Station
Video inspection camera
Pacing and sheeting unit, one die cutting slot

MARK ANDY 4150, 16”, 8 COLOUR FULL UV PRESS
Year of Manufacture: 2002
GEW VCP 45 UV lamps
Corona
Lamination
Sheeting

MARK ANDY 4140, 16”, 6 COLOUR FULL UV PRESS
Year of Manufacture: 1993
Turnbar
Delam / relam
Sheeter
UV and hor air dryers

MARK ANDY 4200, 16”, 8 COLOUR FULL UV PRESS
Year of Manufacture: 2000
Turnbar
Delam / relam
4 die stations

MARK ANDY 2200, 10”, 8 COLOUR FULL UV PRESS
Year of Manufacture: 1997
Delam / relam
Turnbar
Sheeter
Cold foil
Laminating

The above are only brief descriptions, if you would like more information including pricing and photographs of any of the above machines please contact sales@polygraphica.com or phone +44 1924 200444
