Comexi FP1808 – 8 Colour Gearless Flexo Press

Polygraphica have available exclusively the following Comexi Gearless Flexographic Press.

Available immediately, the press can be demonstrated prior to any sale.

COMEXI FP1808 8 COLOUR GEARLESS CI FLEXO PRESS  –  Year of Manufacture: 2002
Maximum web width: 1270mm
Maximum print width: 1240mm
Print repeat range: 350-680mm
Unwind and rewind: flying splice for 800mm maximum roll diameter
Drying: gas
Enclosed chamber doctor blades
BST edge guide
Siemens touch screen
Operator control pads
Video web inspection: AVT Genesis
Inline slitting
Auto viscosity system

Sleeve sizes:
375mm x 16, 380mm x 16, 385mm x 8, 455mm x 8, 460mm x 10, 470mm x 8, 480mm x 16,
490mm x 24, 500mm x 16, 510mm x 10, 520mm x 8, 530mm x 8, 535mm x 8,
540mm x 14, 560mm x 8, 570mm x 8, 580mm x 8, 590mm x 8, 610mm x 8, 630mm 8

Anilox rollers / volume: total 14  –  2 x 10.8v, 1 x 10v, 1 x 14v, 1 x 11v, 1 x 6.5v, 1 x 6v, 2 x 9v, 1 x 4.2v, 4 x 3.4v

Please contact Mike Kennedy at sales@polygraphica.com or telephone +44 1924 200444 for further information on the Comexi FP1808 Flexographic Press.

The following video was taken at the end of September 2017 and shows a true reflection of the current running condition of the flexographic press.

For all your used machinery requirements visit www.polygraphica.com

Comexi FL2508 – 8 Colour Gearless Press

Polygraphica can offer as owners the following Comexi FL2508 Gearless Flexographic Press.

In excellent working condition the machine is available immediately through http://www.polygraphica.com

COMEXI FL2508 8 COLOUR GEARLESS CI PRESS
Year of manufacture: 2003

Maximum web width: 1270mm
Maximum print width: 1220mm
Print repeat range 310-1200mm
Unwind and rewind diameter 1000mm flying splice
Gas drying
Enclosed chamber doctor blades
BST edge guide
Siemens touch screen
Operator control pads
AVT Genesis video inspection system
Inline slitting
Inelme auto viscosity system
Washing system

Twinlock printing sleeves:
440mm x 2h + 8t, 530mm x 16t, 550mm x 16t, 580mm x 8t, 680mm x 8t,
690mm x 15t, 725mm x 8t, 750mm x 16t, 770mm x 8t, 800mm x 8t, 830mm x 8t,
850mm x 8t, 890mm x 8t, 920mm x 16t, 970mm x 8t, 1020mm x 8t, 1050mm x 16t,
1060mm x 8t, 1090mm x 16t, 1180mm x 8t, 420mm x 8t

Mandrel size: 213.283, 276.796, 324.542

Anilox rollers / volume: total 15
2 x 5.5v vignette
3 x 10v uniflex line
3 x 10.8v deep line
5 x 4v uniflex tone
1 x 3.7v tone
1 x 13v deep line

Please contact Mike Kennedy on +44 1924 200444 or email sales@polygraphica.com



This slideshow requires JavaScript.

For Sale: Used Comexi Flexographic Presses

Polygraphica can exclusively offer the following three Comexi Flexographic Printing Presses which are all located here in the UK.
The presses are all 8 colours and incorporate gearless technology.

All the Comexi Flexo Presses are available immedidately and have been well maintained, regularly serviced and are in excellent running condition.

COMEXI FL2508 – 8 COLOUR GEARLESS CI PRESS
Year of manufacture: 2003
Maximum web width: 1270mm
Maximum print width: 1220mm
Long Print repeat range: 310-1200mm
Unwind and rewind diameter 1000mm flying splice
Gas drying
Enclosed chamber doctor blades
BST edge guide
Siemens touch screen
Operator control pads
AVT Genesis video inspection system
Inline slitting
Inelme auto viscosity system
Twinlock sleeves approximately: 200
Anilox approximately: 15
Our Ref: R56334

This slideshow requires JavaScript.



COMEXI FP1808 – 8 COLOUR GEARLESS CI FLEXO PRESS
Year of manufacture: 2002
Maximum web width: 1270mm
Maximum print width: 1240mm
Print repeat range: 350-680mm
Unwind and rewind: flying splice for 800mm maximum roll diameter
Drying: gas
Enclosed chamber doctor blades
BST edge guide
Siemens touch screen
Operator control pads
Video web inspection: AVT Genesis
Print sleeves approximately: 200
Anilox rollers approximately: 14
Inline slitting
Auto viscosity system
Our Ref: R56335

This slideshow requires JavaScript.



COMEXI FW1508 – 8 COLOUR CI GEARLESS FLEXO PRESS
Year of manufacture: 2005
Maximum web width: 1320mm
Maximum print width: 1270mm
Print repeat: 330mm-800mm
Maximum speed: 350m/min
Maximum unwind diameter: 800mm
Unwind turret with splice
Maximum rewind diameter: 800mm
Rewind turret with splice
Drying: gas
Drying length: 4 meters
Doctor blades steel, sealed chamber
Edge guide BST single edge guide front and back
Video camera AVT Jupiter
In line slitting
Viscosity control, Inelme auto
Materials: LDPE, OPP, CPP
Print sleeves approximately: 60
Our Ref: R56343

This slideshow requires JavaScript.



Please contact Mike Kennedy at sales@polygraphica.com if you would like any further information on the above Comexi Flexographic Presses.

If the above machines are not to your exact requirements, please check our website for more flexographic presses we have available: Flexographic Presses Available

Place your trust in using Polygraphica as your preferred used machinery supplier.
We have been trading continuously since 1993 and are the one of the very few machinery suppliers who is ISO9001-2008 certified.





For Sale: Comexi FX2108 – 8 Colour CI Flexo Press

We have available for immediate sale the following Comexi FX2108 CI Flexo Press.

Originally manufactured in 1996, the press is in excellent clean condition and comes with many spare items.  The press is still electrically connected to view it turning over.

Comexi FC2108 – 8 Colour CI Flexo Press – Age:  1996

Web Width: 47″ (1200mm)
Automatic programmatic with robot. Cylinders are automatically load on drum
Non stop unwinder & rewinder in diameter 900mm
Chiller for the drum
Solvent Ink but can print waterbed ink
This machine was printing film
Corona
Returning bar to print: 7+1 or 4+4 or 2+6 etc…
Gas drying with 2 burners. Tune 6 meters long
Climatised Electrical cabinet
Max speed: 350/mn
Repeat: until 1000mm
Over 30 sets of (8+) Plate cylinders for sleeves:
Shaft for sleeves: 8X380, 15X490, 8X780
Anilox: 2X80 l/cm, 6X100, 12X120, 13X160, 10X200, 26X320
Sold with all accessories: Robot for sleeves, graving machine, washing machine, mounting machine
Needs 2 people to run it
Dimension: L 25m X l 8m X h 5,8m
Support: PE 15microns
Machine still On-line and plug. Can run electrically but it is not possible to do inked test

Run abound 2300 hours a year and cost around 2 Million euros new.

Contact sales@polygraphica.com for further information.

For Sale: Comexi FX2108 – 8 Colour Flexo Press

Polygraphica have available for sale the following Comexi 8 Colour Flexographic Press.

Situated in Europe the press is in excellent condition and availalble immediately.

COMEXI FX2108 8 COLOUR FLEXO CI PRESS
Year of manufacture: 1999

Mechanical speed: 350m/min
Materials: Paper, PE, LDPE, HDPE, OPP, BOPP, PET
Film thickness: PE 10-100, PP 20-45my

Number of colours: 8
4 motor per deck CNC position system
Computer supervision
Web width: 1470mm
Print width: 1420mm
Minimum print repeat: 360mm
Maximum print repeat: 1060mm
Turret Unwind and Rewind woth reel diameter unwind: 1000mm
Unwind and rewind cores: 76mm, 152mm
Drying: gas 2 x 200,000kcal
Video camera: Eltromat 3000 + register
Viscosity control: Fasnach
Washing system: self cleaning
Inking system: 1 pump, closed chamber doctor blades
Sleeves and anilox handle by robot
Trim extraction

Anilox Rollers: Approx 15
Printing sleeves for 1.14mm plate: Approx 20 sets
Printing sleeves for 2.54mm plate: Approx 15 sets

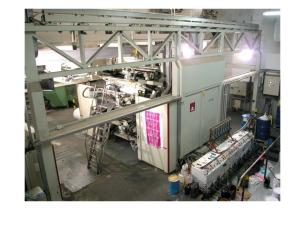

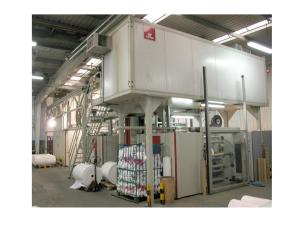

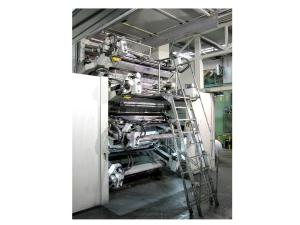

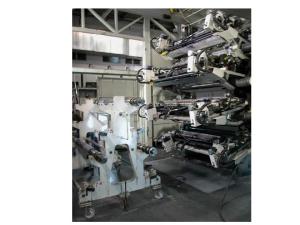

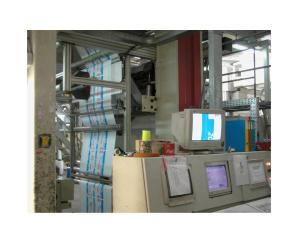

55961-01 55961-02 55961-03 55961-04 55961-05 55961-06If you require any further information on the above machine please contact Mike Kennedy at sales@polygraphica.com

For Sale: Comexi FQ2100 Flexo Press

Polygraphica are delighted to offer the following Comexi FQ2100 CNC 8 colour flexographic press.
Available immediately this Comexi FQ2100 could be installed and in production in your factory within a couple of months.

COMEXI FQ 2100 CNC 8 COLOUR FLEXOGRAPHIC CI PRESS
Year of manufacture: 1993
Materials: Film PE 25-100 microns, Film PP 20-45 microns, Cellophane
Maximum web width: 1270mm
Maximum print width: 1220mm
Print repeat: 350 to 800mm
Mechanical speed: 300 m/min
Gear pitch: 10mm
Number of print units: 8
Turret unwind roll diameter: 800mm
Turret rewind roll diameter: 800mm
Chamber doctor blade system: 8 plus 2 spare one for each side of the press
Electric ink pumps: 8
Web guides x 2, in and out
Print Vision 9000 AVT web inspection system
Drying: gas
Print cylinder drive hub: 8
Print cylinder drive spline: 8
Stainless steel drip trays: 10
Hot air exhaust optimisation unit, safely re-circulates exhaust gasses
Unwind crane and hoist
Rewind crane and hoist

If required Polygraphica can arrange to dismantle, ship and install the Comexi FQ2100 press.

If you have an interest in the Comexi, please contact Mike Kennedy at sales@polygraphica.com

If the above Comexi is not to your requirements please click the link to see alternative flexo presses we have available for sale.

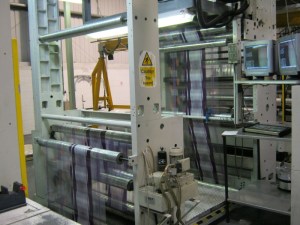

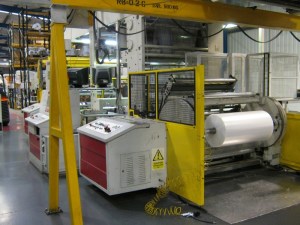

Comexi FQ2100

Comexi FQ2100

Comexi FQ2100

Comexi FQ2100

Comexi FQ2100

Comexi FQ2100



For Sale: Comexi FQ-2100 – 8 Colour Flexo Press

Polygraphica are delighted to offer the following Comexi Flexo Press, which is available immediately.

There has been great deal of interest in this machine and it will not be on the market very long, so please register your interest early to avoid missing out on this press.

COMEXI FQ-2100 CI 8 COLOUR FLEXOPRESS
Year of manufacture: 1998
Maximum web width: 1290 mm
Maximum print width: 1250mm
Number of print units: 8 with enclosed chamber doctor blade systems
Mechanical speed: 300m/min
Print repeat: 350 – 800 mm
Gear pitch: 5mm
Maximum unwind roll diameter: 1000 mm
Maximum rewind roll diameter: 1000 mm
Gas drying: 2 burners eclipse
Video BST Hawk system
Web guides BST
Treater
Dimensions- 17m long x 2.4m wide x 5.82m high

If you require photographs or any further information on the above machine please contact me at: mike.kennedy@polygraphica.com

Comexi FQ-2100

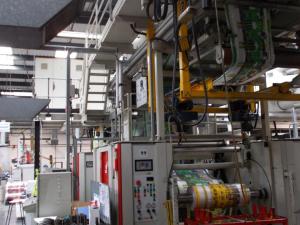

Comexi Flexo Press

Comexi Flexo Press

Comexi Flexo Press
