6 Colour Flexo Presses Clearance

Polygraphica have available the following two presses available for immediate sale.

Although very old, the machines are in working condition.

If you have any interest in the presses please contact Mike Kennedy at sales@polygraphica.com

Carraro Euroflex 6 colour CI Flexo Press
Year 1975
Unwind/ Rewind diameter 600mm diameter.
Flying splice/ Turret for both Unwind and Rewind.
Gas and Electric Drying.
Large range of anilox rollers
Can Print paper and Films.
Doctor bladed units
In production for 1 week
Reduced price of £22,500 Pounds for immediate sale

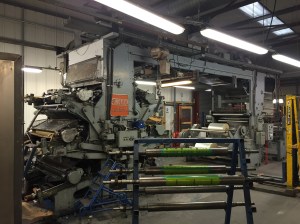

Carraro Euroflex

Carraro Euroflex

Padane Zephyr 6 colour CI flexo press
Age Circa 1970

Web width: 1050mm
Print cylinders
In production for 1 week
Reduced price of £12,500 Pounds for immediate sale

Or both presses for £30,000.00

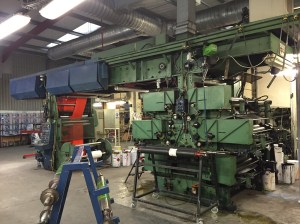

Padane Zephyr

Padane Zephyr

For Sale: PCMC Vision II – 8 Colour Flexo Press

Polygraphica have available for immediate sale the following used PCMC Vision 2 Flexographic Press.

PCMC VISION II FLEXOGRAPHIC PRESS

Year of manufacture: 1998

Number of colours: 8 colour CI
Cantilevered sleeve loading
Web width: 930mm
Print width: 915mm
Print repeat: 280-610mm
Maximum running speed: 240m/min
Gear pitch: 5mm
Flying splice unwind and rewind: 610mm roll diameter
Cantilevered load/off load of rolls
Ink pumps approximately: 16
Sleeves: approximately 450
Aniloxes: approximately 30
Eltromat camera
Fife scan a web viewer

For more information please contact Mike Kennedy at sales@polygraphica.com or by telephone +44 1924 200444.

Polygraphica has been trading over 20 years, please visit our website http://www.polygraphica.com for more details about us.

Used Flexo Presses

Polygraphica Equipment Limted – Used Flexographic Presses Division.

Our used flexo press and flexo machinery division buys and sells used printing presses and machinery solely for the flexographic / flexo printing industry.

Our used machinery database is updated in real time and contains over 1000 second hand machines. To enable you to find the machine you require quickly and easily, the machines have been split into a wide range of flexographic printing categories and also in machine manufacturers:

Polygraphica buys and sells a full range of used flexo presses: central impression, stack, gearless, inline, modular and many others. For paper or film, we have a flexo printing press for your requirements.

We can offer used flexo presses from manufactures that include Bielloni, Carint, CMF, Fischer & Krecke (F&K), Ofem, Padane, PCMC, Schiavi, UtecoWindmoeller and Hoelscher (W&H) and many others.

Polygraphica can provide the flexo press along with all the associated services to dismantle, ship and install the press.

Please feel free to search our listings of used flexo presses, by clicking on the categories below.

Or if you would prefer to see all our listings please click here:  Used flexo press division

Flexographic Presses

4 Colour Central Impression Flexo Presses
6 Colour Central Impression Flexo Presses
8 Colour Central Impression Flexo Presses
9 Colour Central Impression Flexo Presses
8 Colour Gearless Central Impression Flexographic Printing Presses
10 Colour Gearless Central Impression Flexographic Printing Presses
2 Colour Flexographic Stack Presses
4 Colour Flexographic Stack Presses
5 Colour Flexographic Stack Presses
6 Colour Flexographic Stack Presses
8 Colour Flexographic Stack Presses
3 Colour Flexographic Modular Presses
7 Colour Flexographic Modular Presses
Manufacturers

Bielloni
Carint
CMF
Comexi
Fischer & Krecke (F&K)
Ofem
PCMC
Schiavi
Uteco
Windmoeller and Hoelscher (W&H)

For Sale: Comexi FQ-2100 – 8 Colour Flexo Press

Polygraphica are delighted to offer the following Comexi Flexo Press, which is available immediately.

There has been great deal of interest in this machine and it will not be on the market very long, so please register your interest early to avoid missing out on this press.

COMEXI FQ-2100 CI 8 COLOUR FLEXOPRESS
Year of manufacture: 1998
Maximum web width: 1290 mm
Maximum print width: 1250mm
Number of print units: 8 with enclosed chamber doctor blade systems
Mechanical speed: 300m/min
Print repeat: 350 – 800 mm
Gear pitch: 5mm
Maximum unwind roll diameter: 1000 mm
Maximum rewind roll diameter: 1000 mm
Gas drying: 2 burners eclipse
Video BST Hawk system
Web guides BST
Treater
Dimensions- 17m long x 2.4m wide x 5.82m high

If you require photographs or any further information on the above machine please contact me at: mike.kennedy@polygraphica.com

Comexi FQ-2100

Comexi Flexo Press

Comexi Flexo Press

Comexi Flexo Press

Used Flexo Presses and Laminators For Sale

It is a pleasure that we can offer the following laminators and flexo printing presses.

All the machine are located in Europe and available immediately for inspection and purchase.

NORDMECCANCIA SUPER COMBI 2000 LAMINATOR
Year of manufacture: 2001
Laminator layers: 2; Duplex lamination
Type of lamination: combi, solventless and solvent/water based
Working width: 1300mm; Mechanical speed up to: 300m/min
Unwind 1st shaftless diameter reel maximum: 1000mm
Unwind 2nd shaftless diameter reel maximum: 1000mm
Rewind shaftless: diameter reel maximum: 1000mm
Coating unit with interchangeable trolleys
One rotogravure trolley for solvent and water based glue
one solventless trolley
Coating rollers as available
Pumping mixing unit: 2 component solventless adhesive
Drying: 6m drying tunnel with 2 independent hoods and 4 fans
Temperature regulation units x 3
Cold seal unit
Our Ref: W54681

COMEXI CL SOLVENTLESS LAMINATOR
Year of manufacture: 1998
Laminator layers: 2; Duplex lamination
Working width: 1370mm; Maximum laminating width: 1320mm
Mechanical speed up to : 250m/min
Unwind 1st diameter reel maximum: 800mm
Unwind 2nd diameter reel maximum: 1000mm
Unwind cores: 70, 76 or 150mm
Rewind diameter reel maximum: 1000mm; Rewind core: 150mm
Pumping mixing unit: 2 component solventless adhesive
Our Ref: W54680

NORDMECCANICA SIMPLEX SL SOLVENTLESS LAMINATOR
Year of manufacture: 1997
Laminator layers: 2; Duplex lamination
Working width: 1100mm; Speed: 315m/min
Unwind 1st: single shaftless; Unwind 1st: diameter reel maximum: 850mm
Unwind 2nd: single shaftless; Unwind 2nd: diameter reel maximum: 850mm
Rewind: single shaft less; Rewind: diameter reel maximum: 850mm
Pumping mixing unit: Contaldi; Coating rollers as available
Our Ref: W54675

UTECO ONYX 876 GL 120 8 COLOUR GEARLESS CI FLEXOGRAPHIC PRESS
Year of manufacture: 2009
Material: Paper; PP, PET, LDPE, subject to press tension range
Web width: 1250mm; Print width: 1200mm; Mechanical speed: 400m/min
Minimum speed approximately: 30m/min; Repeat range: 350–800 mm
Number of print stations: 8 with enclosed doctor blade systems
Computerized supervision; Sleeve change system; Gearless
TA U automatic turret unwind: 1000mm diameter
TA R automatic turret rewind: 1000mm diameter
Pneumatic expandable shafts: 76mm diameter
Real loading and unloading systems
Bow roller ; Pneumatic dancer roll for automatic control of web tension
Edge guide camber roll; Positioning of print unit decks by CNC motors 4 per deck
Remote control pendants; Drying: electric; Between colour and drying tunnel
Manual air recirculation; Video camera; Register control; Web guide: OPG with platform
Main operators control console
Services: electrics 400volts, 3phase 50hz; Compressed air supply: 6 bar capacity 750 litres/min
Our Ref: R54674

SOMA FLEX MINI 80 8 E 8 COLOUR FLEXOGRAPHIC CI PRESS
Year of manufacture: 2004
Fast sleeve change; 4 motor per deck CNC position system; Computer supervision
Web width: 850mm; Print width: 820mm;
Minimum print repeat : 260mm; Maximum print repeat: 600mm
Unwind: turret with maximum reel diameter of 800mm
Rewind: turret with maximum reel diameter of 800mm
Drying: electrical heaters; Fife video camera; Corona treatment; Web guides: 1 prior to printing
Maximum mechanical speed of machine: 300m/min
Spreader roller prior to printing and rewinding
Our Ref: R54663

FISCHER & KRECKE 34DF / 8 CNC CI FLEXOGRAPHICA PRESS
Year of manufacture: 1992
Number of colours: 8 with chamber doctor blade systems
Mechanical speed: 350mpm; Gear pitch: 10mm
Maximum web width: 1500m; Maximum print width: 1450mm
Minimum print repeat: 380mm; Maximum print repeat: 1000mm
Turret unwind, cores 76/152mm; Unwind diameter: 1000mm
Turret rewind, cores 76/152mm; Rewind diameter: 1000mm
Temperature control unit for CI; Drying: steam heaters
Web guides; Web viewer Eltromat; Viscosity control: Opticolour 2000
Ink tanks and pumps; Inline slitting; Anilox roller: as available; Print cylinders: as available
Our Ref: R54661

WINDMOELLER & HOLSCHER ASTRA FLEX 8 COLOUR CI FLEXOGRAPHIC PRESS
Year of manufacture: 2000
Maximum web width: 1620mm; Maximum print width: 1570mm
Print repeat: minimum/maximum: 400-1010mm
Number of colours: 8; Mechanical speed up to: 364m/min
Automatic turret unwind reel diameter: 1000mm
Automatic turret rewind reel diameter: 1000mm
Video camera web scope Fife and BST super handy scan 4000
Corona treatment; BST web guides
Anilox rollers: approximately 13 between 80L/cm – 340L/cm
including all parts gears & accessories available
Material: PE, LDPE, PP, Polyamide, HDPE, OPP, paper
Our Ref: R54660

UTECO EMERALD 8 Colour flexographic CI GEARLESS
Year of manufacture: 2001
Sleeve based and computer controlled, gearless
Maximum web width: 1250mm; Maximum print width: 1200mm
Print repeat: 350-760mm; Number of print stations: 8
Fully automatic motorized print station positioning with 4 motors per deck
Turret unwind maximum reel diameter: 800mm; Turret rewind maximum reel diameter: 800mm
Drying system: 2 zone, 4 fans thermal oil heat exchangers; Chiller Thermoregulation system
Video camera BST Proscan; Web guides; Automatic wash up system
Slitting device at rewind with rotary knives Helios type and trim exhaust
Our Ref: R54648

If you require any photographs or further information on any of the above machines please contact me at: sales@polygraphica.com

We look forward to being of service to you with your machinery requirements/disposals.

www.polygraphica.com

Used Flexo Presses

Polygraphica buys and sells a full range of used flexo presses: central impression, stack, gearless, inline, modular and many others. For paper or film, we have a flexo printing press for your requirements.

We can offer used flexo presses from manufactures (click the manufacturer to see used presses currently available) Bielloni, Carint, CMF, Fischer & Krecke (F&K), Ofem, Schiavi, Uteco, Windmoeller and Hoelscher (W&H) and many others.

Alternatively you can search by flexo press type:
6 Colour Central Impression Flexographic Printing Presses
8 Colour Central Impression Flexographic Printing Presses
8 Colour Gearless Central Impression Flexographic Printing Presses
10 Colour Gearless Central Impression Flexographic Printing Presses

Full listing of flexo press categories

If you would prefer contact us at sales@polygraphica.com with a list of your requirements and we will reply with a choice of several machines that are currently available on the market.

Used Flexo Presses Wanted

Polygraphica have several overseas customers ready to place orders for good quality flexographic machines.

We have specific enquiries for Nilpeter, Gallus, Mark Andy and KDO narrow web flexo label presses and Schiavi, Comexi, Windmoeller and Hoelscher and Uteco wide web flexo presses.

If you are looking to sell your surplus flexo press, both wide and narrow web, please contact us at sales@polygraphica.com we will offer to existing customers and also list it free of charge on our website www.polygraphica.com
