MPS EF330 – 8 Colour Press – Immediately Available

Polygraphica have available for immediate sale the following MPS EF330 8 Colour Label Press.

The press is in excellent condition and can be seen in full production prior to completion of the sale.

The press is available immediately for dismantling and shipping.

If required, and at extra cost, Polygraphica can dismantle, transport and install the press at your premises.

MPS EF330 – 8 Colour Label Press
Year of manufacture: 2006

Single unwind station + web guider + gluing table

EF system with:
Infeed system with web tension control
8 print stations UV flexo, prepared for hot foil application
8 UV flexo inking kits
8 cooling rollers with drive
Central drive station
Flexible positioning rail
Multi drive system
Central machine control
Automatic pre register setting
Multi pass possibility, in setting

Outfeed system
Base frame for rotary die station
Double vertical rotary die station
Matrix rewinder, flexible positioning
Single rewind station
Automatic length register control for 8 units

Maximum print width: 330mm, 13inch
Maximum web width: +7.5mm, .30inch
Repeat length print cylinders: 305-609mm 12-24 inch, at 3.175mm 1/8inch increments
Mechanical speed: 5-200m/min
Web tension maximum: 600n/cm
Substrate thickness: 20-350micron
Maximum diameter unwinder: 1000mm
Maximum diameter rewinder: 1000mm
Maximum reel diameter unwind and rewind spindles hot foil and multi laminating: 350mm
Maximum reel diameter matrix rewinder: 750mm

Unwind and rewind expandable shafts: 76mm, 3inch
UV drier GEW: 400w/inch, 160w/cm per lamp

Multi laminating unit inclusive cold foil + support UV lamp + unwind and rewind unit
Laminating nip in print station 2
Splice detector
EF Coolmaster
Web turner station, necessary with delam/relam
Backside reading auto register system
Delam/relam
Vetaphone single corona treater
Web video Powerscope BST motorised
Single sided web cleaning Teknek
Combination scissor/crush cut slitter including knives

Plastic materials and unsupported film options:
Low tension control on rewinder
3 pieces anti static bars

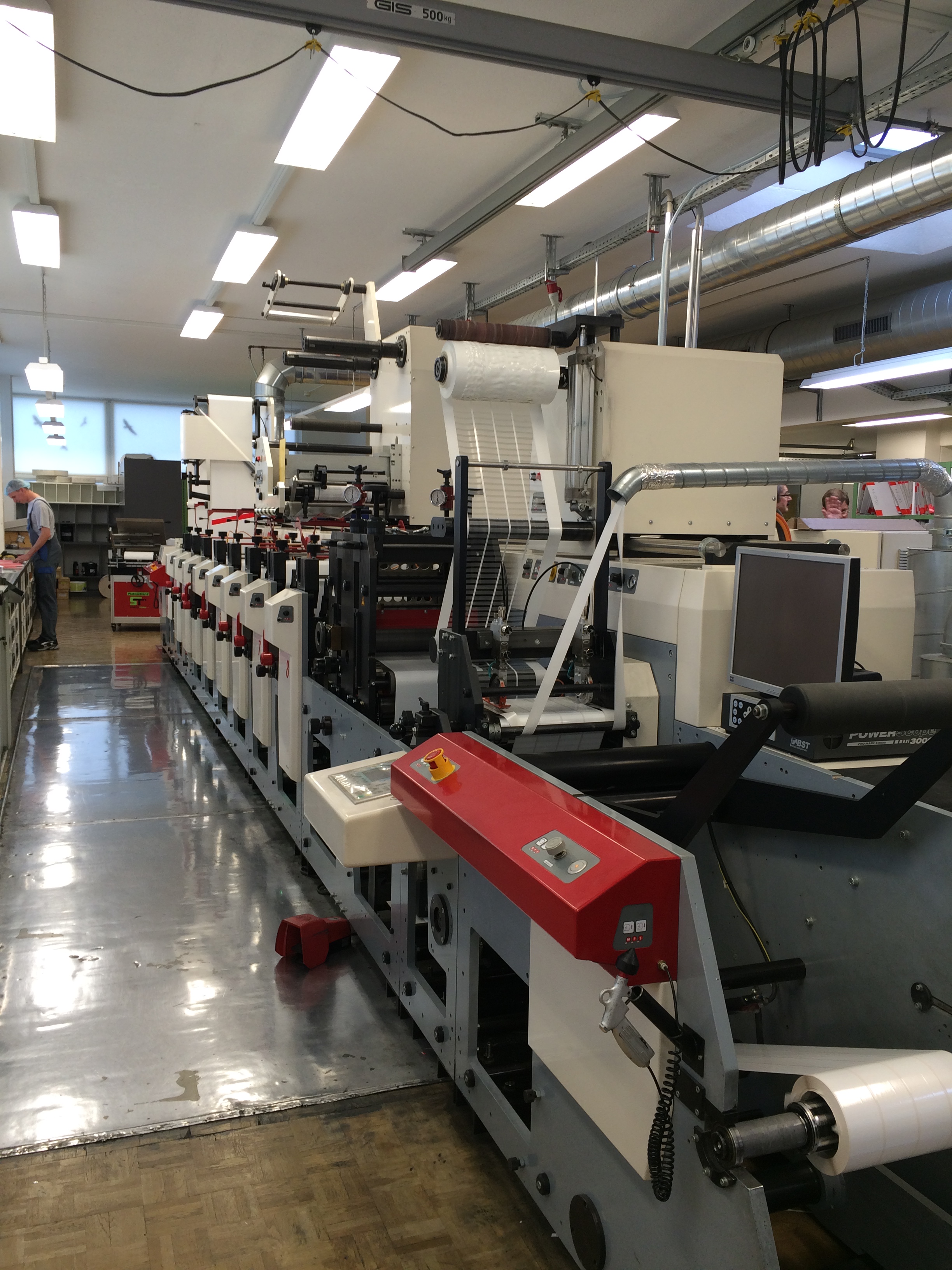

MPS EF330 8 Colour Press

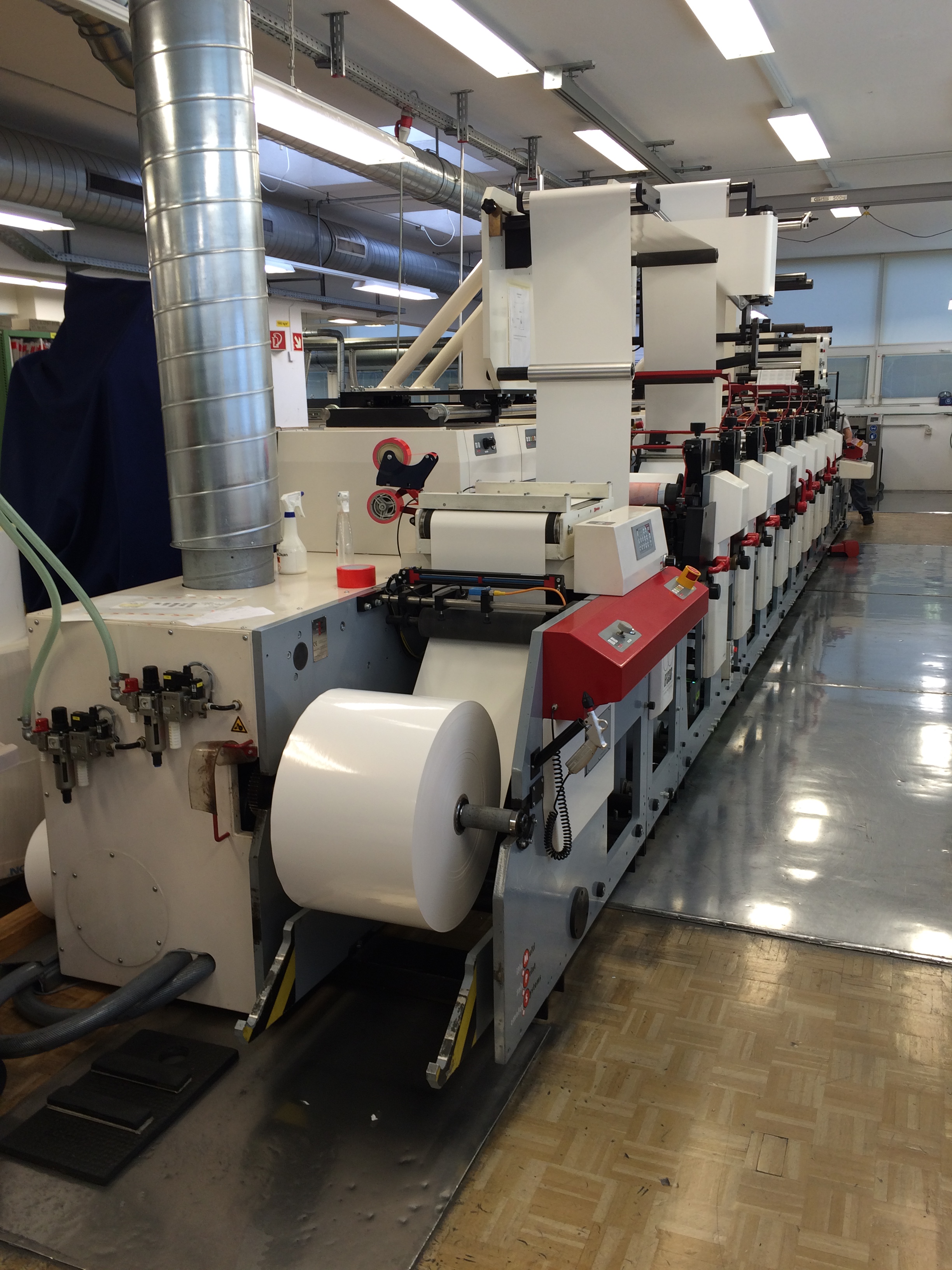

MPS EF330 8 Colour Press

If you require any further information on the above machine please contact Andrew Lapish on +44 1924 200444 or email sales@polygraphica.com

About Polygraphica
Supplier of used machinery. We buy and sell used machinery for a wide range of industries including flexographic printing, rotogravure printing, label printing and converting, paper bag and sack production and tissue converting to name a few.
